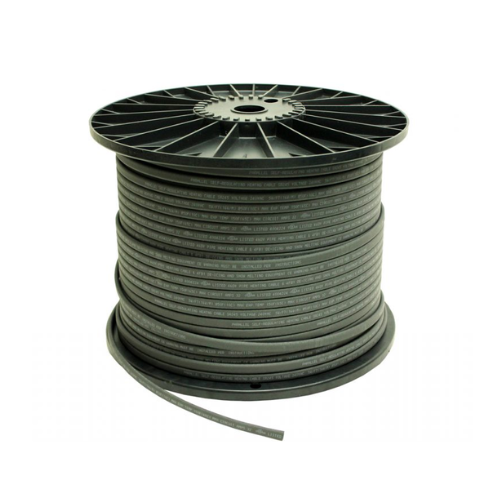

500ft Reel 120V 8W/Ft Self-Regulating Heating Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

About :

• SR Series Self-Regulating Pipe Trace Freeze Protection Heating Cable is designed for a variety of pipe freeze protection applications.

• The cable is constructed so that it will not burn out or overheat when overlapped, and can be used on metal and plastic pipes.

• The cable is available in 100, 250, 500 and 1,000 foot reels.

Also Known As :

King Electric Heaters, Heating Cable, King Heating Cable, Pipe Freeze Protection, King Pipe Freeze Protection, Model SR, Self-regulating Pipe Trace.

Common Applications :

• Pipe Freeze Protection

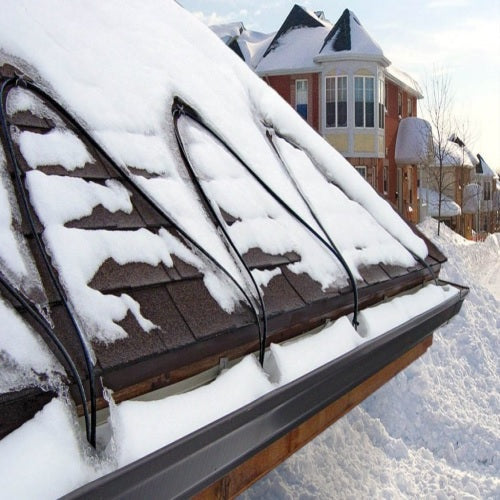

• Roof and Gutter De-icing
• Floor Warming
• Snow Melting

Standards :

• Input Volts : 120V
• Length : 500 FT.
• Watts : 8

Specifications :

• Pipe Rating Watts/Ft. : 8

• Deicing Rating Watts/Ft : 12.1

• Length : 500 feet

• Voltage : 120V

Features :

• Prevent Ice Damns From Forming On Roof & In Gutters
• Suitable For Metallic and Non-Metallic Gutters & Downspouts
• Cable Will Not Burn Out Or Overheat When Overlapped
• Suitable For Use On Metal and Plastic Pipes
• Available in 5W, 8W, 12.1W or 14.8W / Linear Foot
• Wattage Rating Is Determined @ 32°F
• 16 Gauge Heating Cable Bus Wire
• Flouropolymer Insulation and Rugged PVC Jacket
• cULus Certified for USA and Canada.

Construction :

• Conductive Core : Adjusts electrical resistance in response to temperature changes.

• Metallic Conductors : Transmits electrical current throughout the cable.

• Insulating Layer : Provides electrical insulation and directs heat outward.

• Metallic Braid : Offers additional mechanical strength and grounding.

• Outer Jacket : Protects the cable from environmental elements.
