500' 6/4 SOOW Yellow Portable Cord 600V Non-UL

500' 6/4 SOOW Yellow Portable Cord 600V Non-UL

SKU: NES13619XY500   Download PDF

Select a Variant:
  • 500' 6/4 SOOW Yellow Portable Cord 600V Non-UL
Qty:
Now $3,890.00   Web pricing policy
BEFORE   Now $3,890.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

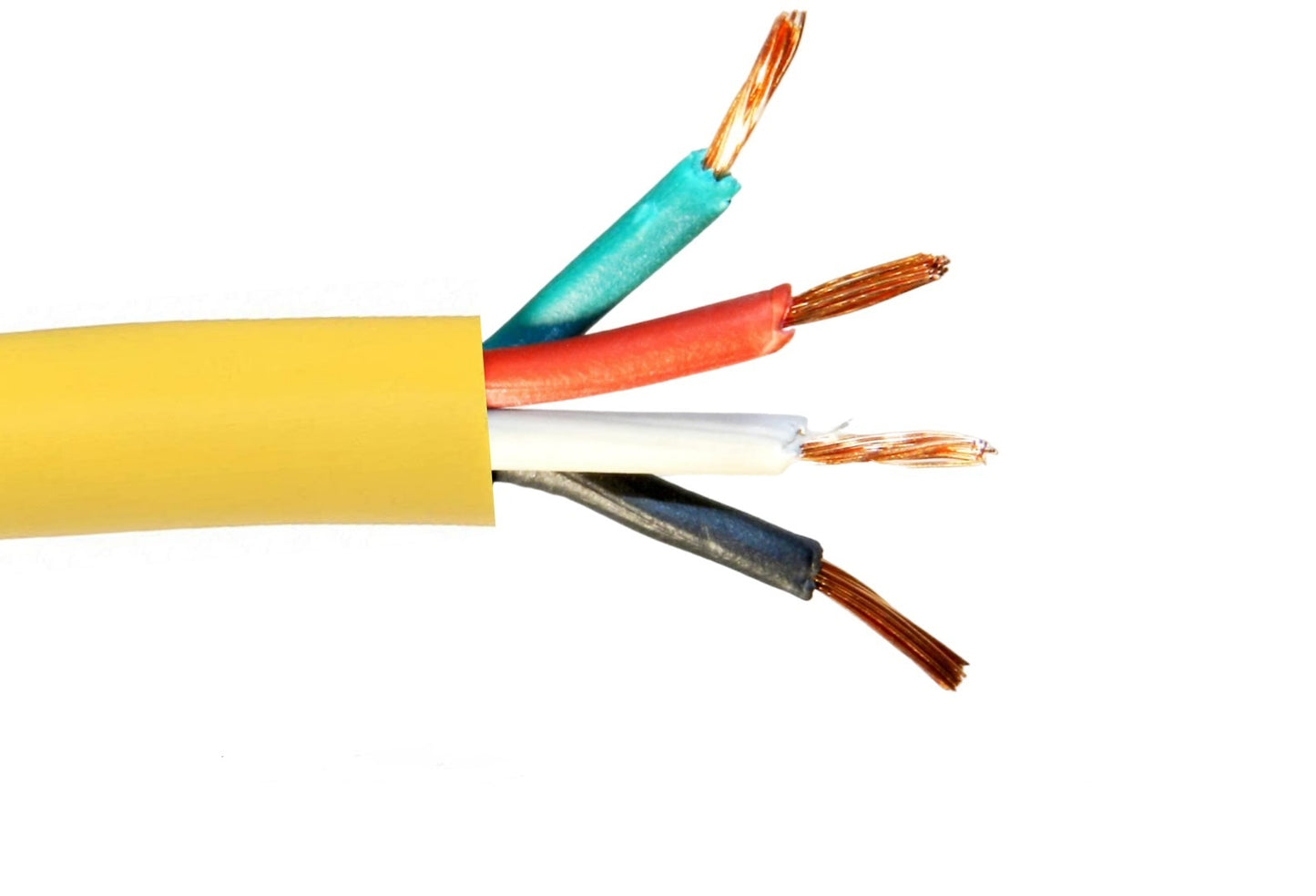

6/4 SOOW Yellow Portable Cord 600V Non-UL

Allowable Ampacity For 6/4 SOOW Portable Yellow Cord-600V Non-UL: 35 Amps

Also Known As:

6/4 SOOW Portable Power Cable, 6/4 SOOW, 6/4 SOOW Power Cord, 6/4 SOOW Portable Cord, 6/4 SOOW Service Cord, 6/4 SOOW Service Cable, 6/4 SOOW Cord, 6/4 SOOW Cable, 6/4 SOOW Wire, 6/4 SOOW Flexible Power Cable, 6/4 SO Cord, 6/4 SOOW Yellow.

Construction:

Conductor:

Stranded, bare, and fully annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions. The gauge is between 18 and 2.

Insulation:

Flexible Ethylene Propylene Diene Monomer EPDM insulation resists fire, abrasion, oil, mechanical impact, sunlight, ozone, air, water, acids, alkalis, and weather.

Jacket:

Resources
Applications
SOOW is water and weather-resistant service electrical cable with an oil-resistant jacket and insulation. It is a reputable low-cost portable power cable that offers superior resistance to abrasion. The cable famously stays intact when in contact with a hot surface, making it perfect for tough applications, including compressors, industrial machinery, push-button remotes, industrial control systems, and water purification systems. SO is commonly used in mills, marinas, mines, ,industrial, commercial and residential facilities. The electrical cable exhibits premium flexibility and is resistant to chemicals, oil, water, sunlight, and air. The voltage rating is set at 600. The temperature range is -40°C to 90°C. SOOW maintains its flexibility in both hot and cold applications.
Features
Standards:
• National Electric Code 501.140 Class I Div. 2
• Mine Safety and Health Administration (MSHA)
• National Electric Code Article 400
• MSHA flame test – P07- KA070018- MSHA
• Canadian Standards Association (CSA) standard 22.2 No. 49
• RoHS Restriction of Hazardous Substances compliant
• OSHA The Occupational Safety and Health Administration compliant
Specifications
Specification:
• Gauge : 6 AWG
• No. Conductors: 4
• Stranding: 65/26
• Insulation Wall, Nom OD Inches: 0.050""
• O.D. Inches: 0.740""
• New Weight lb/1000FT: 480 Lbs
• Amps: 35
