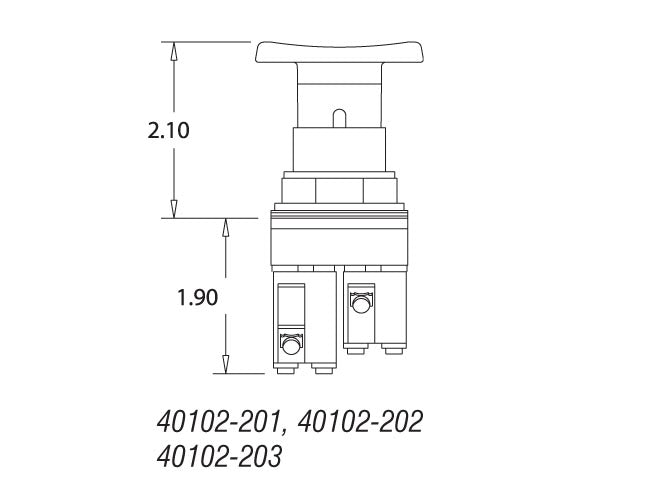

40102-203 30.5mm Mushroom and Rope Pull Operators
40102-203 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102203 Download PDF
Couldn't load pickup availability
The 305mm Mushroom and Rope Pull Operator is a hand-operated control circuit device, rated ‘Heavy Duty’ primarily designed for use with electromagnetic equipment Its body is constructed from die-cast zinc, while the green mushroom plunger is molded from DuPont Delrin 100ST Acetal, offering enhanced impact resistance and features a solid color throughout.
Features and Benefits:
•Ergonomic green mushroom plunger for easy operation.
•Die-cast zinc body for durability.
•Rated 'Heavy Duty' for electromagnetic equipment.
•Nema 12/13 and IP 65 rated for protection against dust and water.
•Positive Break mechanisms with gold plated contacts.
•Able to accept up to three tiers of operators.
•Maintained switch type for consistent operation.
•Ideal for control circuits in electromagnetic equipment.
•Suitable for heavy-duty industrial applications.
Specifications:
| Body Material | Die-cast zinc |
| Plunger Material | DuPont Delrin 100ST Acetal |
| Operator Size | 2.00 in. |
| Operator Type | Plastic Mushroom |
| Switch Type | Maintained |
| Operating Force | 9.0 lb |
| Approx. Shipping Weight | 0.57 lb |
| Old Catalog Number | R102 |
| Nema Rating | Nema 12/13 |
| IP Rating | IP 65 |
| Positive Opening Contact | Yes |
