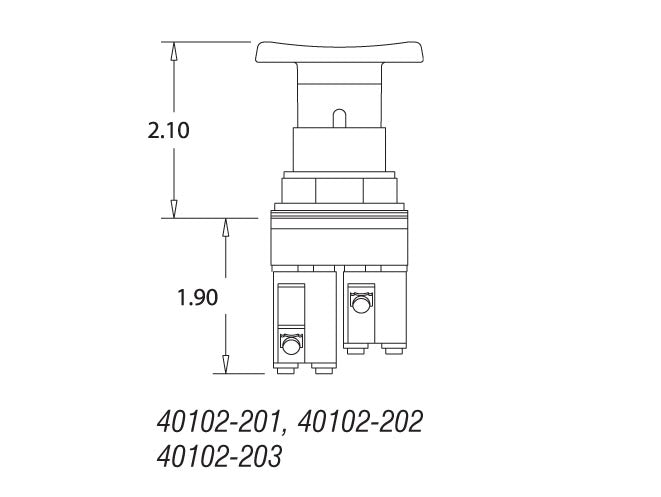

40102-201 30.5mm Mushroom and Rope Pull Operators
40102-201 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102201 Download PDF
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
The 305mm Mushroom and Rope Pull Operators is a hand-operated control circuit device, rated as 'Heavy Duty', primarily designed for use with electromagnetic equipment The body is constructed from die-cast zinc, while the black mushroom ergonomic plunger is molded from DuPont Delrin 100ST Acetal, providing enhanced impact resistance and featuring a solid color throughout.
Features and Benefits:
•Nema 12/13 rated.
•IP 65 rated.
•Gold plated positive break contacts.
•Operator accommodates up to three tiers of two.
Specifications:
| Operator Color | Black |
| Operator Material | Plastic |
| Size | 2.00 in. |
| Padlock Feature | No |
| Switch Type | Maintained |
| Positive Opening Contact | Yes |
| Contact Block(s) Included | 50716 50723-NO/NC |
| Make before Break | Yes |
| Operating Force | 9.0 lb |
| Plunger Head Operator Replacement | 43200-041 |
| Old Catalog Number | R102 |
| Operating Type | Maintained |
