40102-114 30.5mm Mushroom and Rope Pull Operators
40102-114 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102114 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

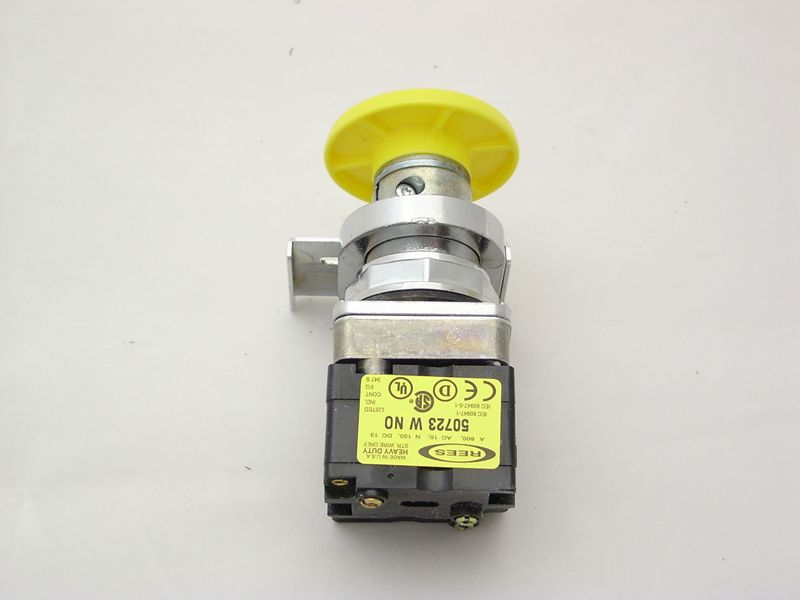

The 305mm Mushroom and Rope Pull Operators is a hand-operated, control circuit device rated ‘Heavy Duty’ mainly for use with electromagnetic equipment The body is crafted from die-cast zinc, and features a yellow mushroom ergonomic shaped plunger made from DuPont Delrin 100ST Acetal for enhanced impact resistance, ensuring it is solid color throughout.
Features and Benefits:
•Nema 12/13, IP 65.
•Positive opening contact.
•Padlock feature available.
•Maintained switch type.
•Operating force of 9.0 lb.
Specifications:
| Operator Color | Yellow |
| Operator Material | Plastic |
| Operator Size | 2.00 in. Mushroom |
| Contact Block(s) Included | 50716 50723-NO/NC |
| Make before Break | |
| Approx. Shipping Weight | 0.85 lb |
| Plunger Head Operator Replacement | 43200-044 |
| Old Catalog Number | R102 |
