40102-112 30.5mm Mushroom and Rope Pull Operators
40102-112 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102112 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

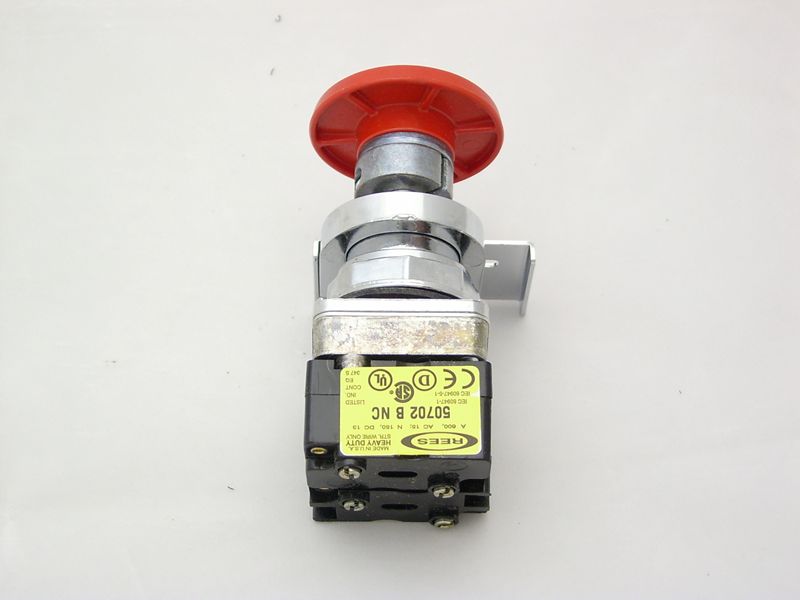

The 305mm Mushroom and Rope Pull Operator is a hand-operated control circuit device rated for heavy-duty use with electromagnetic equipment The body is constructed from die-cast zinc, and it features a red mushroom ergonomic shaped plunger molded from DuPont Delrin 100ST Acetal for enhanced impact resistance, maintaining a solid color throughout.
Features and Benefits:
•Rated 'Heavy Duty' for use with electromagnetic equipment.
•Body made from die-cast zinc.
•Red mushroom ergonomic plunger for improved impact resistance.
•UL/NISD E357870 certified.
•Nema 12/13, IP 65 rated.
•Positive Break with Gold Plated Contacts.
•Sliding Padlock Attachment.
Specifications:
| Operator Color | Red |
| Operator Material | Plastic |
| Operator Size | 2.00 in. |
| Padlock Feature | Yes |
| Switch Type | Maintained |
| Positive Opening Contact | |
| Operating Force | 9.0 lb |
| Contact Block(s) Included | 50701 50702-NO/NC |
| Plunger Head Operator Replacement | 43200-042 |
| Old Catalog Number | R102 |
| Operating Type | Maintained |
