40102-102 30.5mm Mushroom and Rope Pull Operators
40102-102 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102102 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

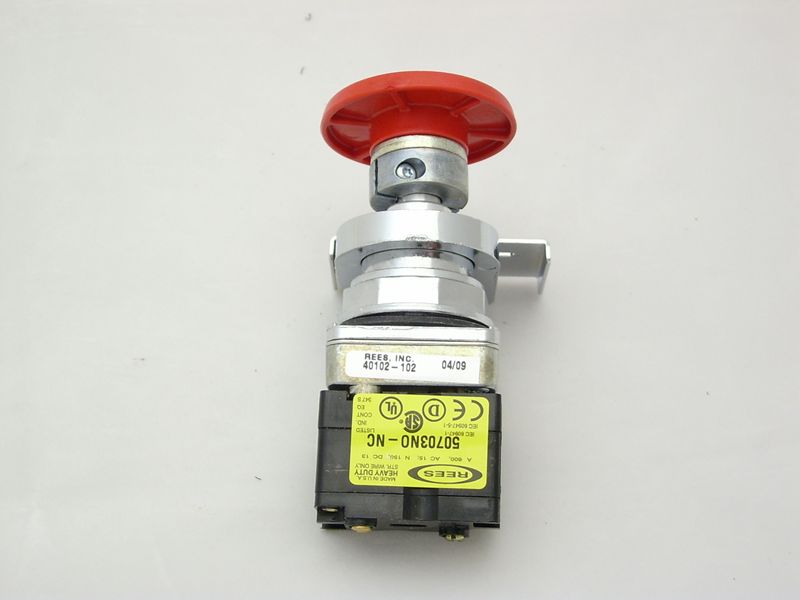

The 305mm Mushroom and Rope Pull Operator is a hand operated control circuit device rated for heavy duty use with electromagnetic equipment The body is constructed of die-cast zinc, featuring a red mushroom shaped plunger made from DuPont Delrin 100ST Acetal, providing improved impact resistance with solid color throughout.
Features and Benefits:
•Heavy duty normally for use with electromagnetic equipment.
•UL/NISD E357870 certified.
•Nema 12/13, IP 65 rated.
•Positive break with gold plated contacts.
•Includes sliding padlock attachment.
Specifications:
| Operator Color: | Red |
| Operator Material: | Die-cast zinc |
| Size: | 2.00 in. Plastic Mushroom |
| Padlock Feature: | Yes |
| Switch Type: | Maintained |
| Positive Opening Contact: | |
| Contact Block(s) Included: | 50703-NO/NC |
| Operating Force: | 8.0 lb |
| Approx. Shipping Weight: | 0.80 lb |
| Plunger Head Operator Replacement: | 43200-042 |
| Old Catalog Number: | R102 |
| Operating Type: | Maintained |
