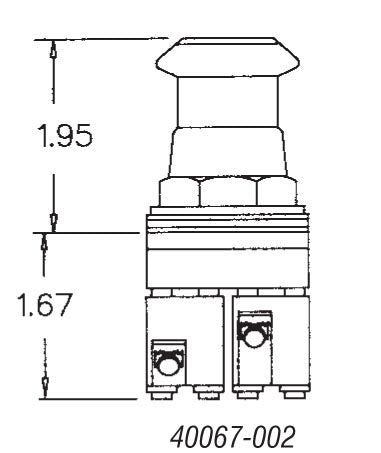

40067-102 30.5mm Mushroom and Rope Pull Operators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This item is a heavy-duty hand-operated control circuit device, designed specifically for use with electromagnetic equipment Constructed from durable die-cast zinc, it features flat plungers made from red anodized aluminum, ensuring both functionality and durability The device is key lockable when depressed and meets NEMA 12/13 and IP 65 standards, offering protection against dust and water The contacts are gold plated, which enhances their conductivity and ensures a reliable performance.

Each operator can accommodate up to three tiers of two contact blocks, allowing for a configuration of six separate blocks.

Features and Benefits:

•Hand-operated control circuit device rated for heavy-duty use.

•Constructed from die-cast zinc for durability.

•Flat plungers made from red anodized aluminum.

•Key lockable when depressed for added security.

•NEMA 12/13 and IP 65 rated for protection against dust and water.

•Gold plated contacts for better conductivity.

Specifications:
