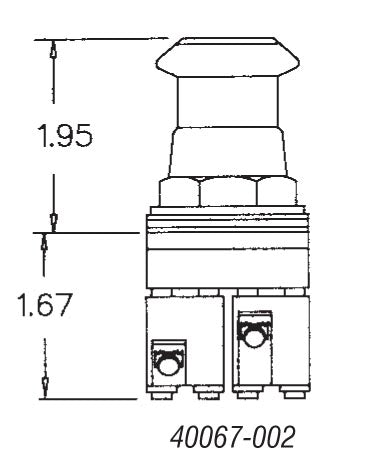

40067-002 30.5mm Mushroom and Rope Pull Operators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

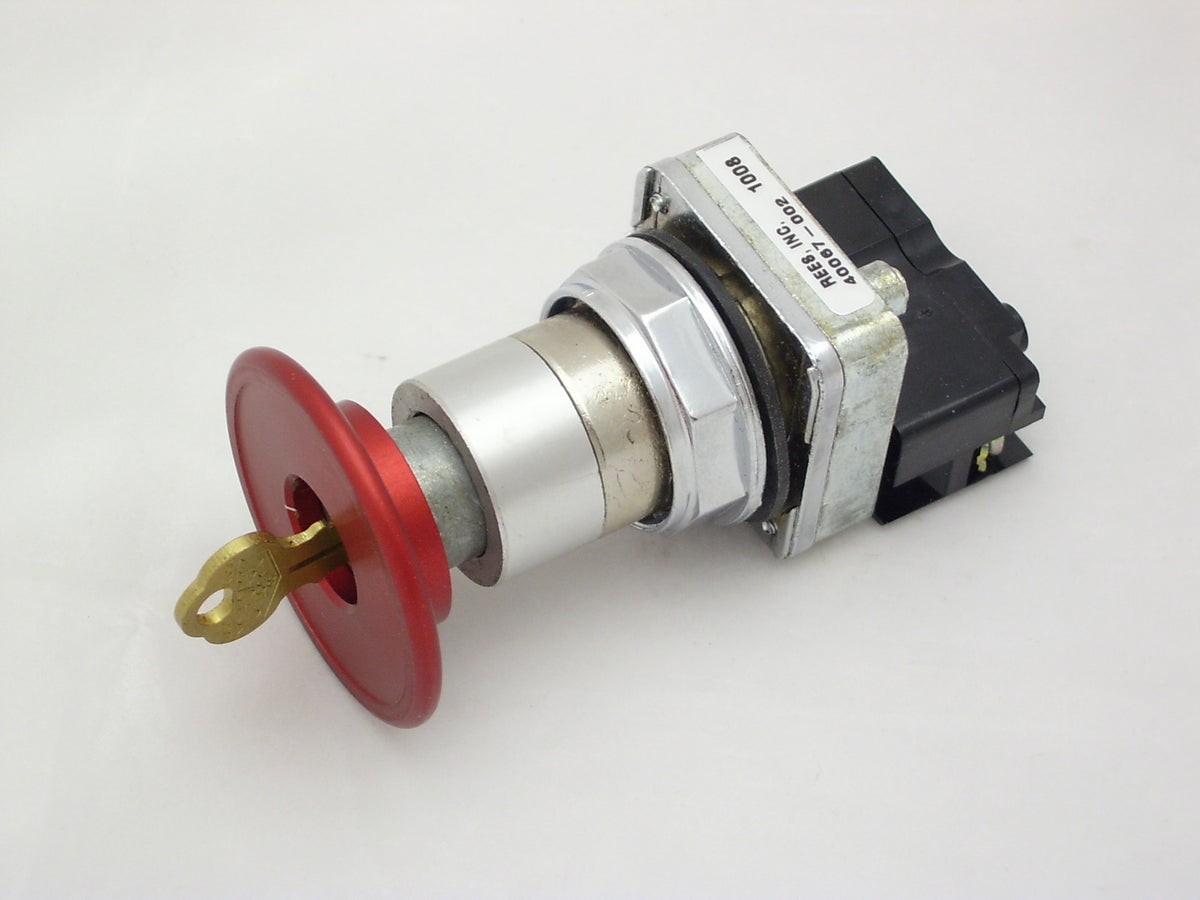

The 305mm Mushroom and Rope Pull Operators is a hand-operated control circuit device rated 'Heavy Duty' primarily designed for use with electromagnetic equipment The device features a body constructed of die-cast zinc and flat plungers made from red anodized aluminum This operator is key lockable when depressed and meets Nema 12/13 and IP 65 standards It is equipped with gold-plated contacts and can accommodate up to three tiers of two contact blocks, allowing for a maximum of six separate blocks.

Each operator comes with all necessary mounting hardware.

Features and Benefits:

•Key lockable when depressed.

•Nema 12/13, IP 65 rated.

•Gold plated contacts.

•Supports up to six separate contact blocks with three tiers of two blocks each.

•Constructed from durable die-cast zinc.

Specifications:
