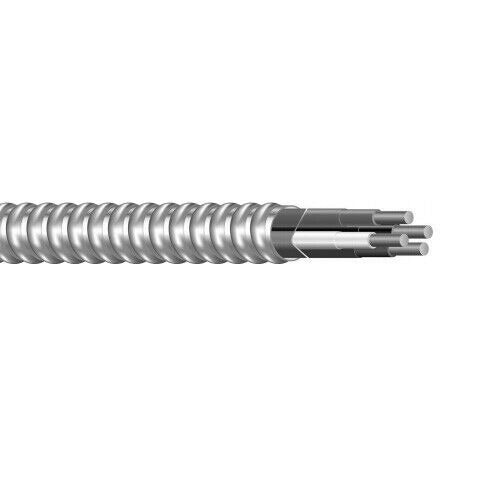

4/3 Solid MC Copper Aluminum Armored W/ GRND PVC Jacket

4/3 Solid MC Copper Aluminum Armored W/ GRND PVC Jacket

Min Length: 25 FT

Select gauge from drop-down menu for prices:

4/3 Solid MC Copper Aluminum Armored W/ GRND PVC Jacket
4/3 W/GRND MC
Technical Specifications:
Ground Wire Size (AWG): 8
Ground Wire No. Strands: 19
Size AWG: 4/3
Stranding: 19
Diameter Steel Core (Inches): .986
Weight Per 1000ft Total (Lbs.): 635
Allowable Ampacity 60C (Amps): 70
Allowable Ampacity 75C (Amps): 85
Allowable Ampacity 90C (Amps): 95

Applications:
Type MC Cable is suitable for use as follows:

  • Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
  • Power, lighting, control, and signal circuits.
  • Fished or embedded in plaster.
  • Concealed or exposed installations.
  • Environmental air-handling spaces per NEC 300.22 (C).
  • Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
  • Installation in cable tray and approved raceways.

Standards & References:
Type MC Cable meets or exceeds the requirements of UL Standard 83, UL Standard 1569 for Type
MC, UL Standard 1685, Federal Specification A-A59544 (formerly J-C-30B), Jacketed & Non Jacketed will both pass " UL Test" & "FT4/IEEE 1202" (70,000 Btu/hr) Vertical Cable Tray Flame Test, and the National Electrical Code.
Type MC Cable is listed for use in UL 1, 2, and 3 Hour Through-Penetration Firestop Systems.
