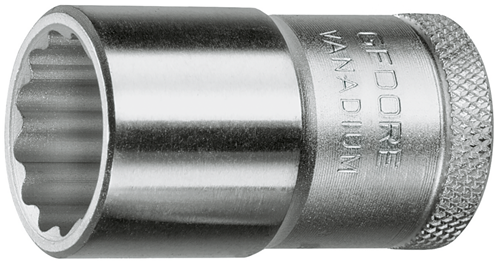

37110 - Durable 1/2" Socket Wrench Insert, Chrome-Plated Vanadium Steel
37110 - Durable 1/2" Socket Wrench Insert, Chrome-Plated Vanadium Steel
SKU: SKU: 37110
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This socket wrench insert is designed with a square drive that complies with DIN 3120 - C 125 and ISO 1174 standards It features a ball retention groove for added security during use The manual operation is enhanced with a non-slip cross knurling, which provides a strong grip Crafted from high-quality GEDORE vanadium steel (31CrV3), it boasts a polished and chrome-plated finish that enhances its durability and resistance to corrosion.
Specifications:
| Total width [mm] | 26.7 mm |
| Total length [mm] | 40 mm |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Standard | DIN 3120 – C 12.5 ISO 1174 |

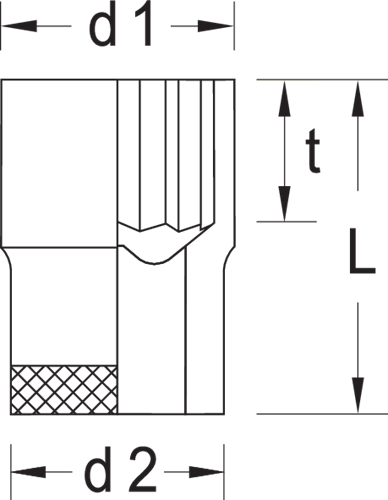

| Insert-Ø 1 | 26.7 mm |
| Insert-Ø 2 | 24.2 mm |
| Working length | 40.0 mm |
| Operating depth | 17.0 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | polished, chrome-plated |
| Compliance | compliant |
| Width across flats 1 [AF] | 3/4" |
| Safety | Ball Catching Cricket |
