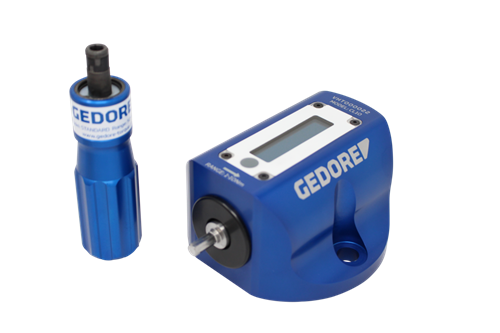

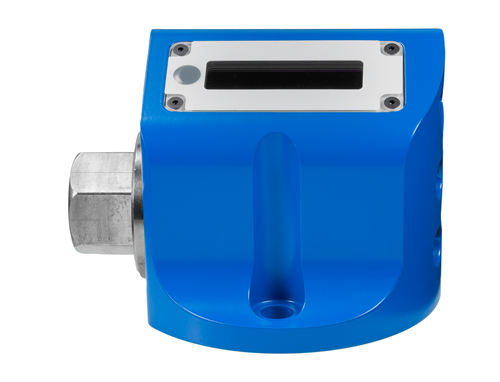

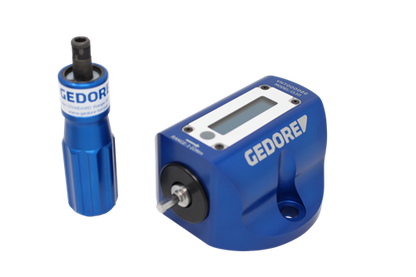

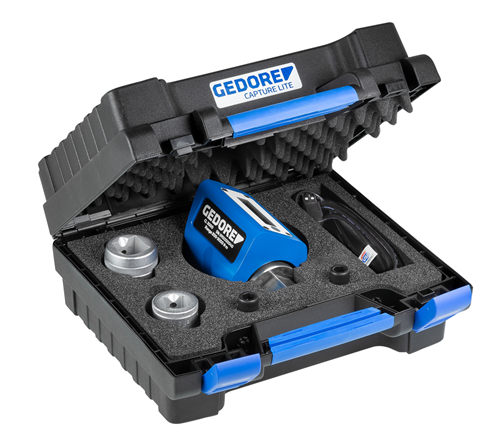

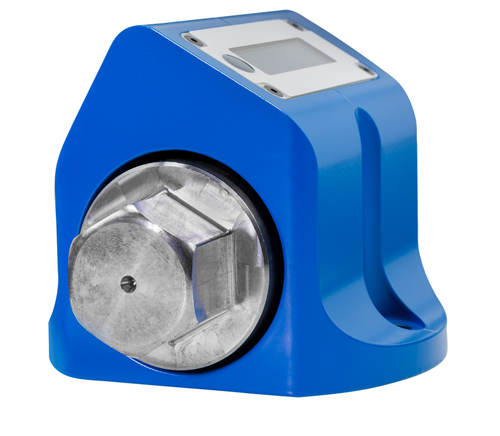

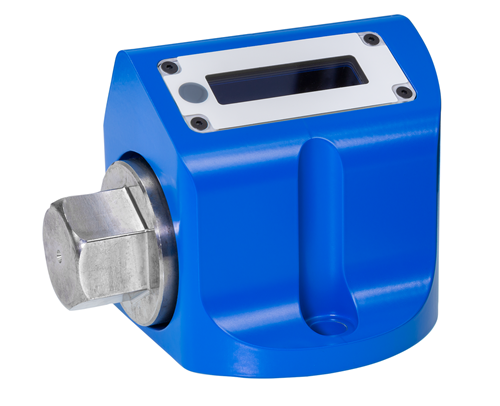

3420523 - Precision Electronic Torque Tester 200-3000 Nm, USB Interface

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure precision in your work with this advanced electronic testing device, designed specifically for the inspection and adjustment of right-handed torque wrenches and screwdrivers Perfectly suited for verifying preset torque wrenches, this device offers a user-friendly "Plug & Work" feature, allowing for quick and efficient inspections directly on the production line It effectively measures right-handed torque wrenches across a range of 200 - 3,000 N·m, delivering exceptional accuracy of +/- 1% on all readings (+/- 1 digit), fulfilling even the most demanding industrial standards.

With a single press of a button, easily switch between measurement modes: Track (for sliding value display), First-Peak (detects breakpoints), and Peak (records peak values) You also have the flexibility to switch units among Nm, lbf·ft, and lbf·in, and the display automatically resets after each measurement for your convenience Power and data transfer are streamlined via a USB connection, and the device comes complete with a factory certificate.

To enhance your experience, complimentary evaluation PC software for plausibility checks is included in the package.

Features and Benefits:

•Simple and fast inspection of torque wrenches/screwdrivers.

•Measurement accuracy of +/- 1% at all readings.

•Three measurement modes: Track, First-Peak, and Peak.

•Switchable measurement units: Nm, lbf·ft, lbf·in.

•Data transfer and power supply via USB.

•Includes factory certificate and free evaluation software.

•Intermediate inspection and adjustment of right-handed torque wrenches/screwdrivers.

•Checking preset torque wrenches.

Specifications:
