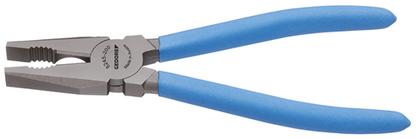

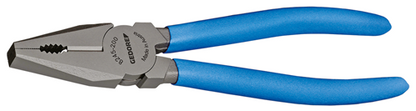

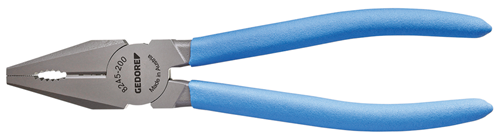

30720 - Euro Model 200mm Combination Pliers with Slimline Head
30720 - Euro Model 200mm Combination Pliers with Slimline Head
SKU: SKU: 30720
Couldn't load pickup availability
Description:
Introducing the Euro model combination pliers, expertly designed with a dip-insulated grip and a length of 200 mm, adhering to the DIN ISO 5746 standard This versatile tool features a slim head profile, perfect for accessing tight spaces The precision cutting edges are induction-hardened and achieve a hardness rating of 62 - 64 HRC, making them capable of cutting through both round and flat materials with ease.
These pliers are crafted from GEDORE's special hardened and tempered steel, ensuring durability They are drop-forged, oil-hardened, and duly annealed for optimal performance The pliers come with a chrome-plated finish and comfortable two-component handle covers Choose from two variants: the TL version with a steel-grey finish and blue non-slip handles, or the TC version featuring classic chrome-plating paired with blue dipped handles.
Features and Benefits:
•Universal model suitable for confined spaces.
•Induction-hardened precision cutting edges with high hardness.
•Made from specially hardened and tempered steel.
•Available with non-slip handle covers.
•Ideal for cutting various types of wires and materials.
Specifications:
| Total width [mm] | 50 mm |
| Total height [mm] | 15 mm |
| Total length [mm] | 200 mm |
| Design non-sparking | No |
| Standard | DIN ISO 5746 |
| Jaw shape [mm] | flat jaws |

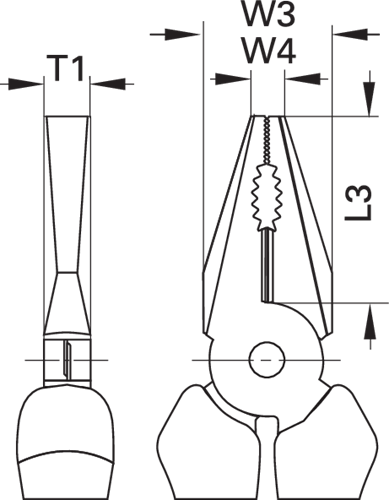

| Jaw length L3 [mm] | 42 mm |
| Bevel | with |
| Joint types | inserted joint |
| Handle design | dip-insulated |
| Handle colour | blue |
| Hardening process | Induction hardened |
| Width of head 1 [mm] | 29.5 mm |
| Head thickness [mm] T1 | 10.5 mm |
| Material | Heat-treated steel |
| with cutting edge | Yes |
| Surface | steel-grey |
| Opening spring present | No |
| Compliance | compliant |
| Blade shape | with facet |
| Hardness of cutting edge | 62 - 64 HRC |
| Cutting values for hard wire | 2.5 mm / 13 AWG |
| Cutting values for medium hard wire | 3.8 mm / 7 AWG |
| Cutting values for soft wire | 6 mm / 3 AWG |
| Cu cable, multi wire cross section | 16 mm² |
| Multi-wire cable Ø | 13 mm |
| Width of centres W4 [mm] | 7.4 mm |
| Thickness of point | 10.5 mm |
