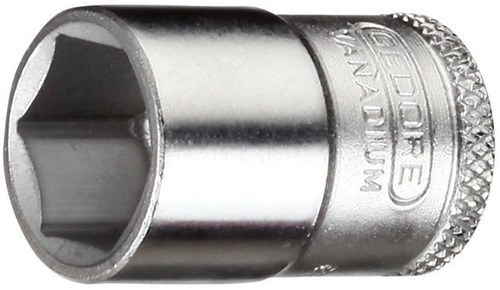

30400 - 9mm Chrome-Plated Socket with Non-Slip Grip
30400 - 9mm Chrome-Plated Socket with Non-Slip Grip
SKU: SKU: 30400
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Engineered to meet DIN 3124 and ISO 2725-1 standards, this socket features a square drive crafted according to DIN 3120 - C 10 and ISO 1174 specifications, complete with a ball retention groove Designed for manual operation, it boasts a non-slip cross knurling for enhanced grip Made from high-quality GEDORE vanadium steel (31CrV3), this socket is finished with a polished, chrome-plated coating for added durability and a stylish look.
Features and Benefits:
•Manually operated with non-slip cross knurling.
•Constructed from GEDORE vanadium steel 31CrV3.
•Polished, chrome-plated for durability.
•Compliant with relevant standards.

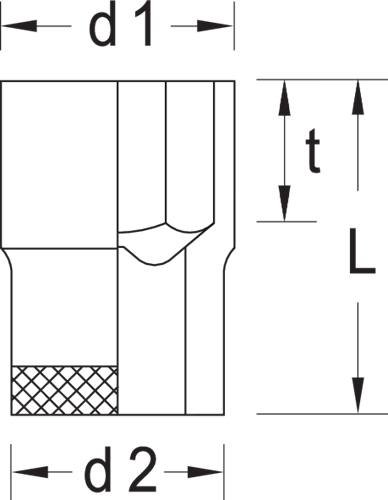

Specifications:
| Total width [mm] | 18 mm |
| Total height [mm] | 18 mm |
| Total length [mm] | 28 mm |
| Drive mount, square [metric] | 10.0 mm |
| Drive connector square [inch] | 3/8" |
| Insert-Ø 1 | 13.5 mm |
| Insert-Ø 2 | 17.5 mm |
| Working length | 28.0 mm |
| Operating depth | 9.0 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | polished, chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 9 |
