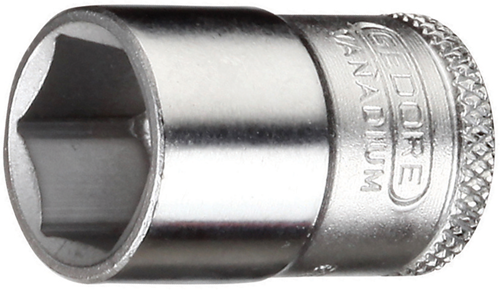

30240 - 7mm Socket, Square Drive, Chrome-Plated GEDORE Steel
30240 - 7mm Socket, Square Drive, Chrome-Plated GEDORE Steel
SKU: SKU: 30240
Couldn't load pickup availability
Description:
Discover precision engineering with this high-performance tool, crafted in accordance with DIN 3124 and ISO 2725-1 standards Featuring a square drive that complies with DIN 3120 - C 10 and ISO 1174, it includes a ball retention groove for secure fitment Designed for manual operation, the tool is easy to grip thanks to its non-slip cross knurling Constructed from GEDORE vanadium steel 31CrV3, it boasts a polished chrome-plated finish for durability and resistance.
Features and Benefits:
•Square drive as per DIN 3120 - C 10, ISO 1174.
•Manually operated with non-slip cross knurling.
•Made of GEDORE vanadium steel 31CrV3, polished, chrome-plated.
Specifications:

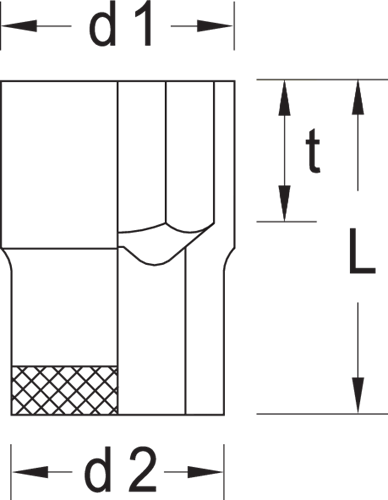

| Total width [mm] | 18 mm |
| Total height [mm] | 18 mm |
| Total length [mm] | 28 mm |
| Net weight [kg] | 0.024 kg |
| Drive mount, square [metric] | 10,0 mm |
| Drive connector square [inch] | 3/8" |
| Standard | DIN 3124 ISO 2725-1 DIN 3120 – C 10 ISO 1174 |
| Insert-Ø 1 | 11,0 mm |
| Insert-Ø 2 | 17,5 mm |
| Working length | 28,0 mm |
| Operating depth | 5,0 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | polished, chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 7 |
| Safety | Ball Catching Cricket |
