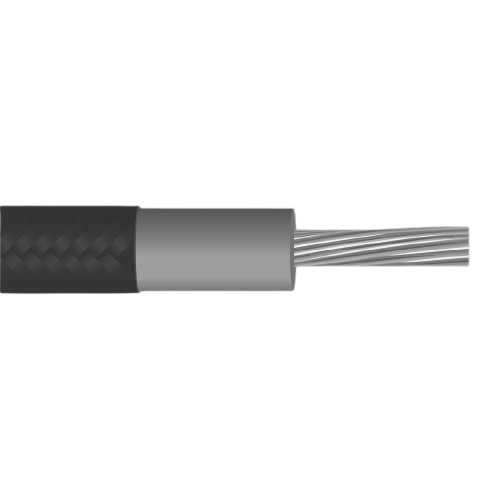

3 AWG 1C SRML High Temperature Motor Lead Wire 600V 200C

3 AWG 1C SRML High Temperature Motor Lead Wire 600V 200C

Application:

Used for leads to motors, transformers or other electrical equipment, also in equipment where hazardous, and/or high temperature, conditions exist requiring flexible heat resistant conductors at 600 volts

Also Known As:

3 AWG SRML wire, SRML motor lead wire 600V, 3 AWG High temp wire 200°C, 3 AWG SRML wire 3 specs, 3 AWG SRML 600V 200C, 3 AWG Motor lead SRML 1C wire, 3 AWG heat-resistant wire, 3 AWG 200°C 600V motor wire, 3 AWG SRML high temp lead wire, 3 AWG single conductor SRML

Conductor:

Flexible stranded tinned, annealed copper per ASTM B33.

Sizes:

#18 AWG - 750 MCM.

Insulation:

Silicone Rubber. A fiberglass braid jacket is applied over the insulation, then treated with a high-temp finish. This product is available in a wide range of colors.

Approvals:

UL Style as listed. All sizes are recognized by CSA as appliance wire. 18 AWG - 6 AWG is CSA certified as equipment wire (SEWF-2); 4 AWG - 4/0 AWG is certified as equipment wire (SEW-2)

Specifications:

• Size: 3 AWG
• Stranding: 133/.0202
• Insulation Thick: 0.060
• Braid Thick: 0.017
• Nominal. O.D: 0.460
• UL Style: 3231
• Temp Rating: 200°C
• Approx Weight LBS/K FT : 240
