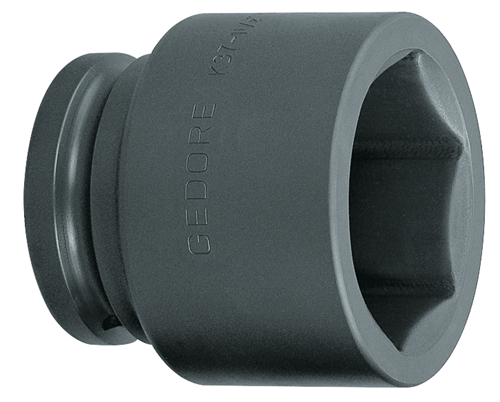

28720 - 70mm Impact Socket for Electric and Air Tools
28720 - 70mm Impact Socket for Electric and Air Tools
SKU: SKU: 28720
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust impact socket crafted to meet the standards of DIN 3129 and ISO 2725-2, making it ideal for use with standard electric and air tools This tool features a square drive designed in alignment with DIN 3121 - H 40 and ISO 1174, constructed from durable burnished steel For sizes starting at SW 95 mm, it is compatible with models No KB 6470 and No KB 6475 Please note this item is not part of any standardization.
Features and Benefits:
•Designed according to DIN 3129 and ISO 2725-2.
•Compatible with all standard electric and air tools.
•Burnished steel construction for durability.
•Test torque (min.) of 15100 Nm.
•Safety features include circlip and pin.
Specifications:
| Total length [mm] | 102 mm |
| Net weight [kg] | 3.535 kg |
| Drive mount, square [metric] | 40.0 mm |
| Drive connector square [inch] | 1.1/2" |
| Standard | DIN 3129 ISO 2725-2 DIN 3121 - H 40 ISO 1174 |
| Actuation type | machine-operated |
| Insert-Ø 1 | 105.0 mm |
| Insert-Ø 2 | 86.0 mm |
| Working length | 102.0 mm |
| Operating depth | 43.0 mm |
| Material | steel |
| Surface | gun-metal finish |
| Width across flats 1 [mm] | 70 |
| Compliance | compliant |
