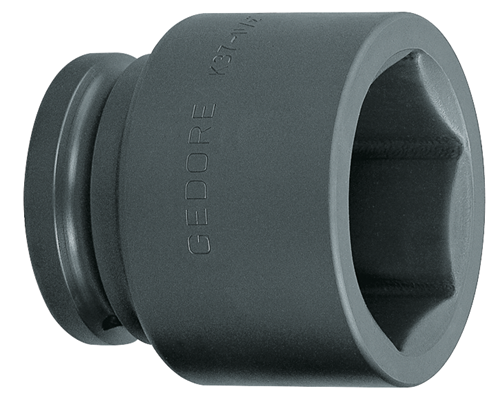

28480 - 55mm Burnished Steel Impact Socket for Electric Tools
28480 - 55mm Burnished Steel Impact Socket for Electric Tools
SKU: SKU: 28480
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Presenting a robust impact socket that adheres to the DIN 3129 and ISO 2725-2 standards, making it ideal for machine operation with standard electric and pneumatic tools It boasts a square drive that meets the DIN 3121 - H 40 and ISO 1174 specifications, crafted from durable burnished steel To utilize this socket effectively for SW 95 mm, it is recommended to pair it with tools No KB 6470 and No KB 6475.
Features and Benefits:
•Machine-operated.
•Compatible with standard electric and air tools.
•Made of burnished steel.
•Test torque of 15100 Nm.
•Safety features include circlip and pin.
Specifications:
| Total length [mm] | 95 mm |
| Net weight [kg] | 2.459 kg |
| Drive mount, square [metric] | 40.0 mm |
| Drive connector square [inch] | 1.1/2" |
| Standard | DIN 3129 ISO 2725-2 DIN 3121 - H 40 ISO 1174 |
| Actuation type | machine-operated |
| Insert-Ø 1 | 86.0 mm |
| Insert-Ø 2 | 86.0 mm |
| Working length | 95.0 mm |
| Operating depth | 35.0 mm |
| Material | steel |
| Surface | gun-metal finish |
| Test torque (min.) [Nm] | 15100 Nm |
| Compliance | compliant |
| Width across flats 1 [mm] | 55 |
