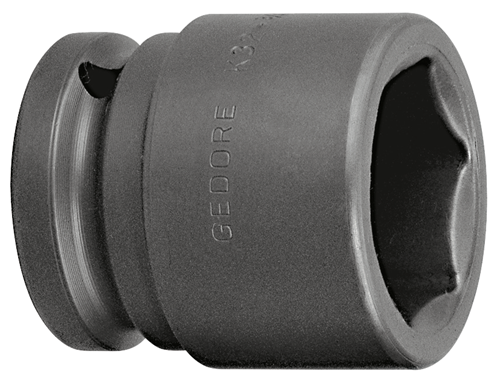

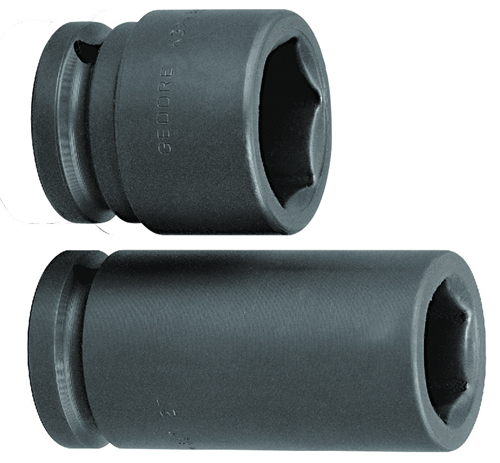

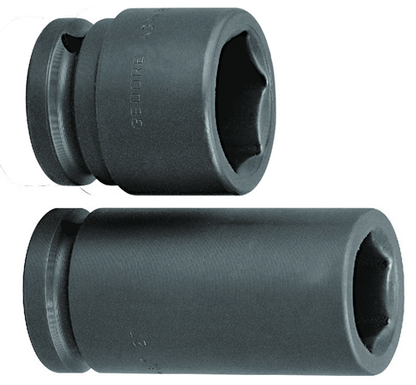

28220 - Durable 22mm Impact Socket for Electric and Air Tools
28220 - Durable 22mm Impact Socket for Electric and Air Tools
SKU: SKU: 28220
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust impact socket crafted in accordance with DIN 3129 and ISO 2725-2 standards This versatile tool is designed for optimal performance with both standard electric and air-operated equipment It features a square drive that meets the specifications of DIN 3121 - H 20 and ISO 1174 standards Constructed from burnished steel, this socket combines strength and reliability for all your machine operation needs.
Features and Benefits:
•Designed according to DIN 3129, ISO 2725-2.
•Machine-operated, suitable for standard electric and air tools.
•Square drive to DIN 3121 - H 20, ISO 1174.
•Made of burnished steel.
Specifications:
| Total length [mm] | 51 mm |
| Net weight [kg] | 0.345 kg |
| Drive mount, square [metric] | 20.0 mm |
| Drive connector square [inch] | 3/4" |
| Standard | DIN 3129 ISO 2725-2 DIN 3121 - H 20 ISO 1174 |
| Actuation type | machine-operated |
| Insert-Ø 1 | 37.0 mm |
| Insert-Ø 2 | 44.0 mm |
| Working length | 51.0 mm |
| Operating depth | 13.0 mm |
| Material | steel |
| Surface | gun-metal finish |
| Compliance | compliant |
| Width across flats 1 [mm] | 22 |
| Safety | Circlip and pin |
