2812541000 - M12 4-Pole Sensor Line, 10m PUR Halogen-Free Design
2812541000 - M12 4-Pole Sensor Line, 10m PUR Halogen-Free Design
SKU: SKU: 2812541000 Download PDF
Couldn't load pickup availability
Description:

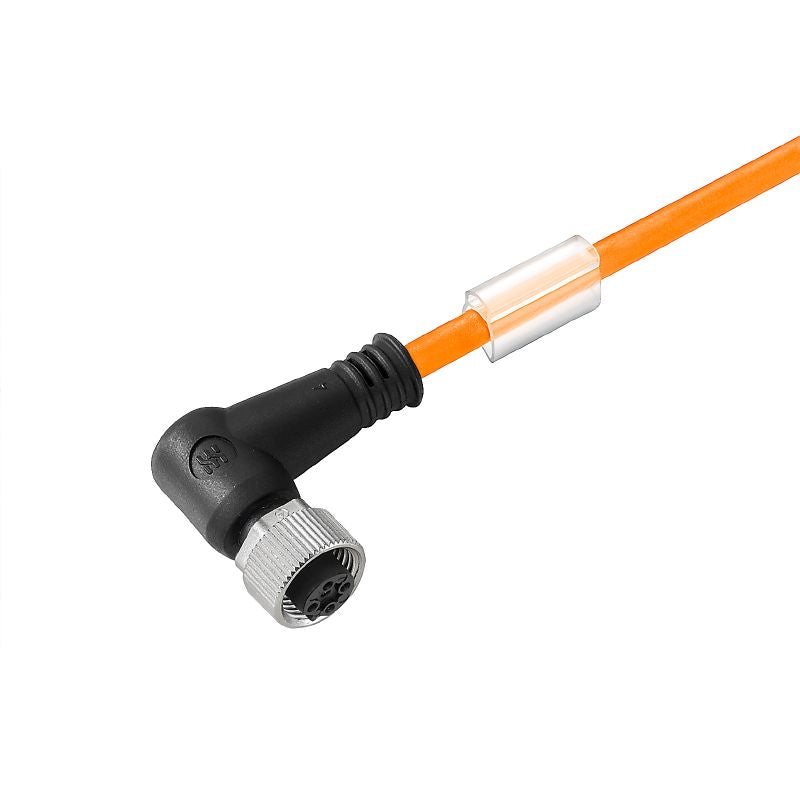

Introducing the M12 sensor/actuator line, featuring a robust design with 4 poles and a generous 10-meter length This model showcases an angled socket configuration, ensuring ease of use in various applications Crafted from halogen-free PUR material, it prioritizes safety and environmental compliance This product is RoHS certified, guaranteeing adherence to strict standards for hazardous substances Optimally designed for reliable performance in your projects.
Features and Benefits:
•Bending cycles rated for 10 million.
•Minimum bending radius for moving applications is 7.5 times the cable diameter.
•Minimum bending radius for stationary applications is 4 times the cable diameter.
•Outer diameter is 4.9 mm ± 0.2 mm.
•Resistant to welding beads.
•Suitable for cable carriers.
•Torsion resistance of 360°/m.
•Welding spark resistance.
•IP65, IP66, IP67, and IP68 protection when screwed in.
•Temperature ranges from -25 to +80 °C for moving and -40 to +80 °C for stationary applications.
•Gold-plated contact surface.
•Integrated angled socket design.
Specifications:
| Cable length | 10 m |
| Core cross-section | 0.34 mm² |
| Nominal current | 4 A |
| Nominal voltage | 24 V |
| Pollution severity | 3 |
| Temperature range of housing | -25…+85 °C |
| Number of poles | 4 |
| Sheath material | PUR |
| Sheathing colour | orange |
| Connection thread | M12 |
| Coding | A-coded |
| Plug, left | M12, A-coded, IP68, female contact, angled 90°, Plastic, LED |
| Plug, right | free conductor end |
| Certificate no. (cULus) | E307231 |
