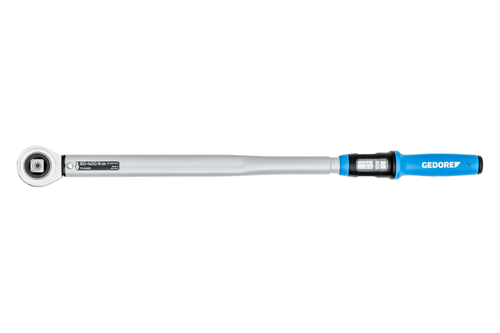

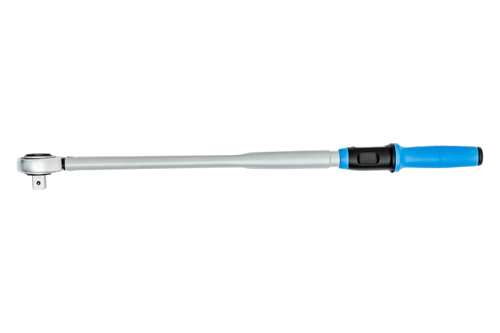

27840 - Precision Torque Wrench 80-400 Nm with Ratchet Drive
27840 - Precision Torque Wrench 80-400 Nm with Ratchet Drive
SKU: SKU: 27840
Couldn't load pickup availability
Description:
Ensure precision with this robust adjustable torque wrench, designed for controlled screw tightening within the range of 80 - 400 Nm (60 - 300 lbf·ft) This sturdy tubular tool features an integrated ratchet and a square drive, making it suitable for a variety of industrial and trade applications Adhering to the DIN EN ISO 6789-2:2017 Type II Class A standard, it boasts an impressive accuracy with a maximum permissible deviation of +/-3%, surpassing the standard rate of +/-4%.
Ideal for both right and left-hand tightening, this torque wrench is your go-to for professional-grade results.
Features and Benefits:
•Robust, matt powder-coated tubular steel construction.

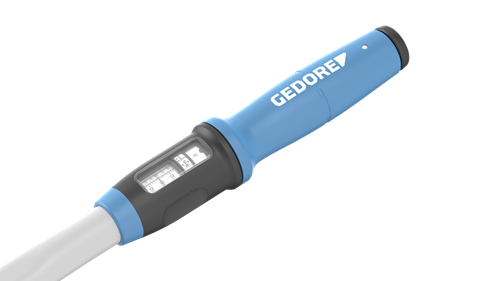

•Ergonomic handle shaped according to the natural grip position.
•Tactile hand centring aid and calibration aid in the middle of the handle.
•Double scale Nm / lbf·ft protected by an enlarged viewing window.
•Precise release mechanism with tactile and audible release signal.
•Includes roll away protection.
•Assembly.
•Production.
•Maintenance.
•Repair.
Specifications:
| Total width [mm] | 62 mm |
| Total height [mm] | 52 mm |
| Total length [mm] | 690 mm |
| Drive type/drive | Push-through square |
| Drive square inch | 3/4" |
| Number of teeth | 36 |
| Standard | DIN 3120 - A 12,5 ISO 1174 |
| Torque (max.) [lbf·ft] | 300 lbf·ft |
| Torque (min.) [lbf·ft] | 60 lbf·ft |
| Torque (max.) [Nm] | 400 Nm |
| Torque (min.) [Nm] | 80 Nm |
| Calibration length | 593,3 mm |
| Width of head 1 [mm] | 62,5 mm |
| Head height 1 [mm] | 31 mm |
| Material | Tubular steel construction, top-grade plastic parts |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Return angle | 10 ° |
