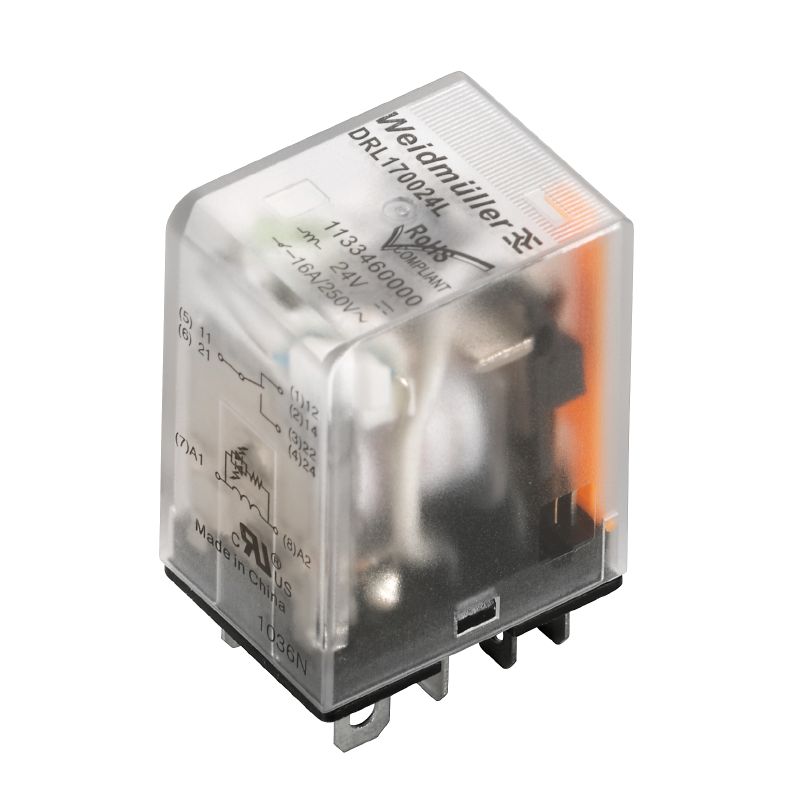

2765370000 - 24V D-Series Relay with 16A Capacity and CO Contact (Pack of 20)
2765370000 - 24V D-Series Relay with 16A Capacity and CO Contact (Pack of 20)
SKU: SKU: 2765370000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the D-Series relay, engineered for reliability and performance with a single change-over (CO) contact composed of AgSnO This versatile relay operates at a rated control voltage of 24 V AC and can handle a continuous current of up to 16 A It is equipped with flat blade connections measuring 48 mm x 05 mm Please note that this model does not feature a test button, making it a streamlined choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS regulations without exemption.
•Includes a mechanical switch position indicator.
•Transparent color design.

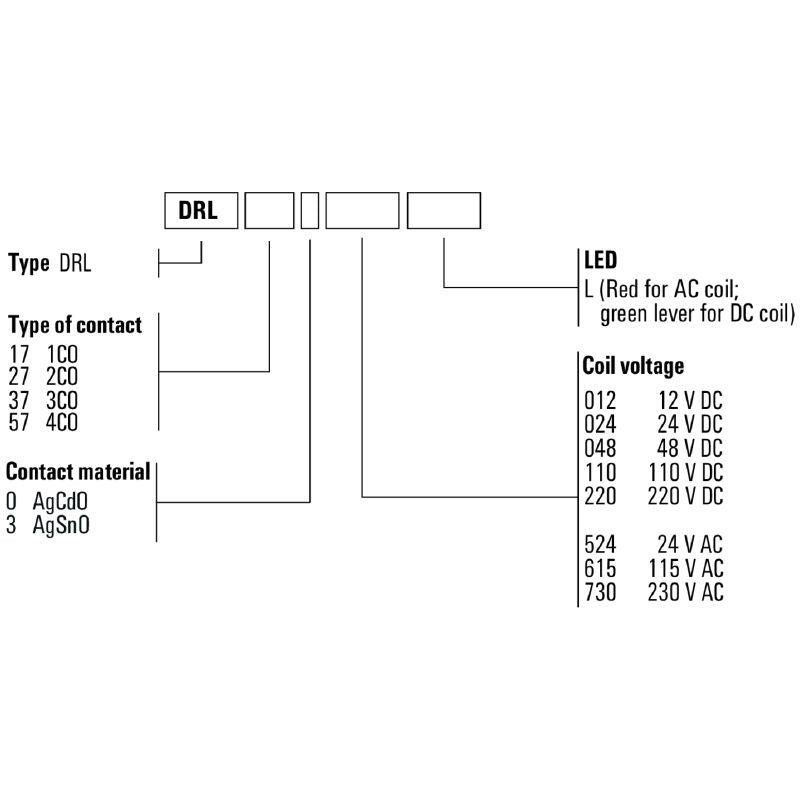

Specifications:

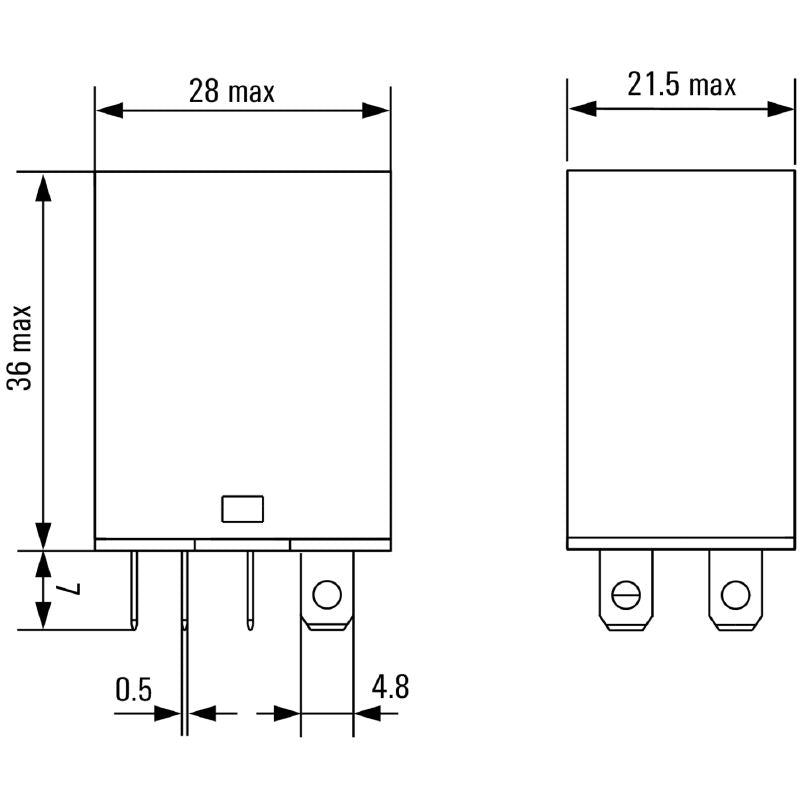

| Depth | 36 mm |
| Height | 28 mm |
| Width | 21.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -25 °C…55 °C |
| Humidity | 35 % to 85 % relative humidity level |

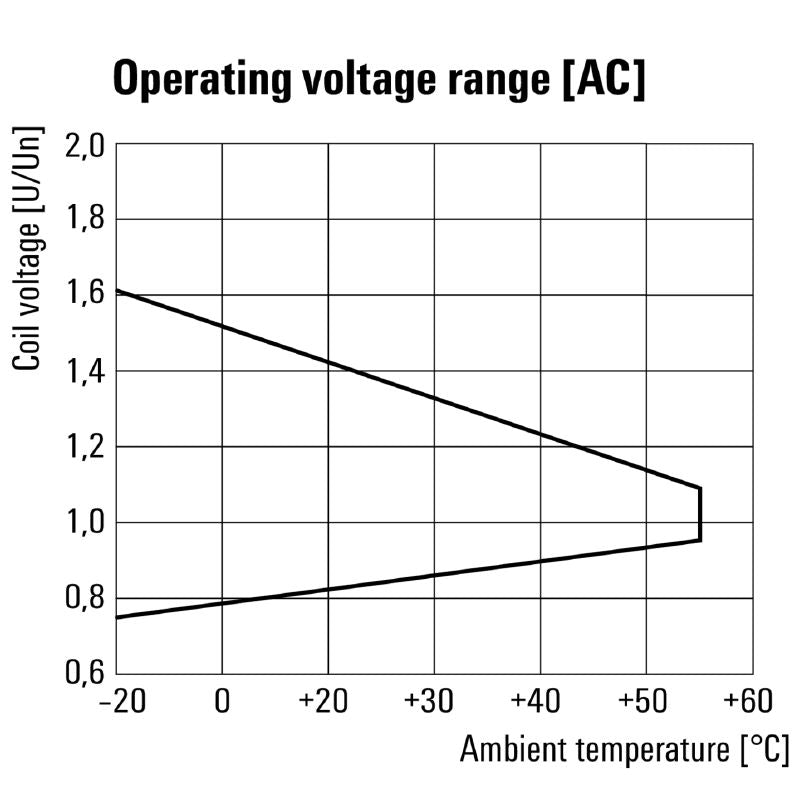

| Rated control voltage | 24 V AC |
| Rated current AC | 54 mA |
| Power rating | 1.2 VA |
| Coil resistance | 160 Ω ± 10 % |
| Status indicator | red LED |
| Rated switching voltage | 250 V AC |
| Max. switching frequency at rated load | 0.1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power | 10 mA @ 12 V |
| Inrush current | 80 A / 50 ms |
| AC switching capacity (resistive), max. | 4000 VA |

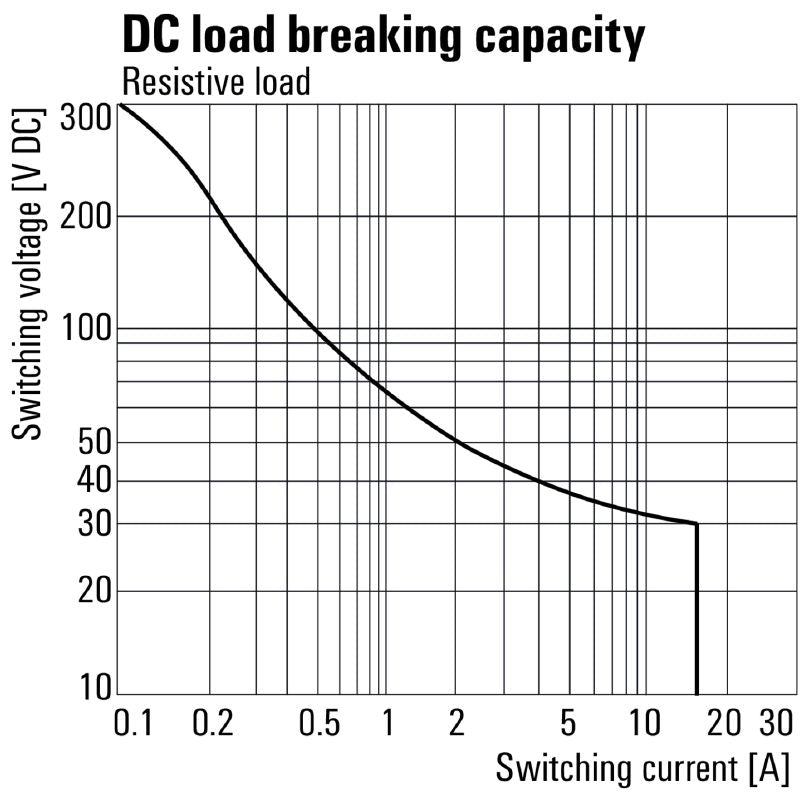

| DC switching capacity (resistive), max. | 480 W @ 24 V |
| Switch-on delay | <20 ms |
| Switch-off delay | <20 ms |

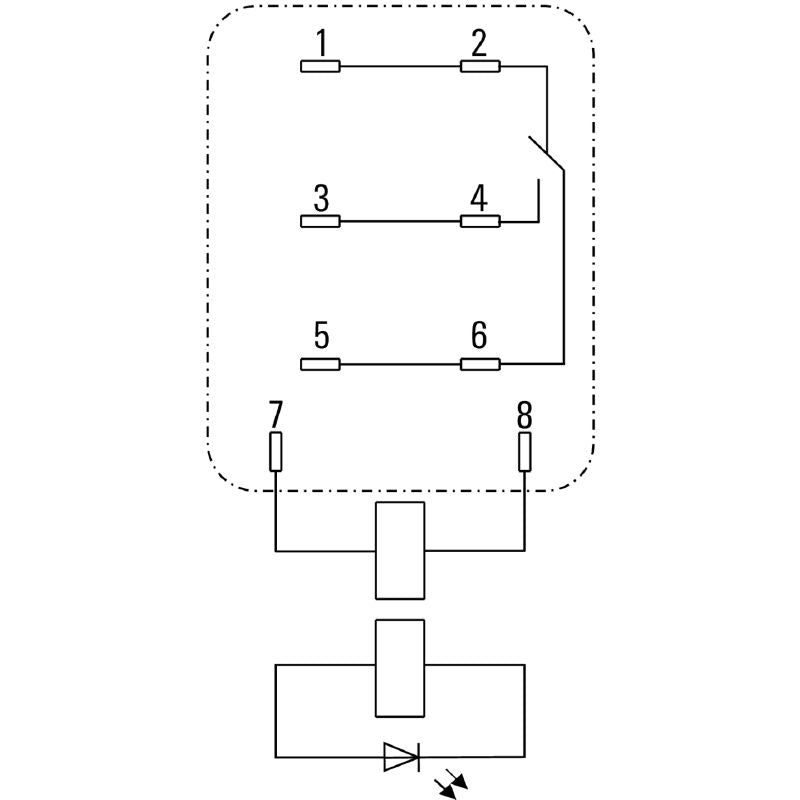

| Contact type | 1 CO contact (AgSnO) |

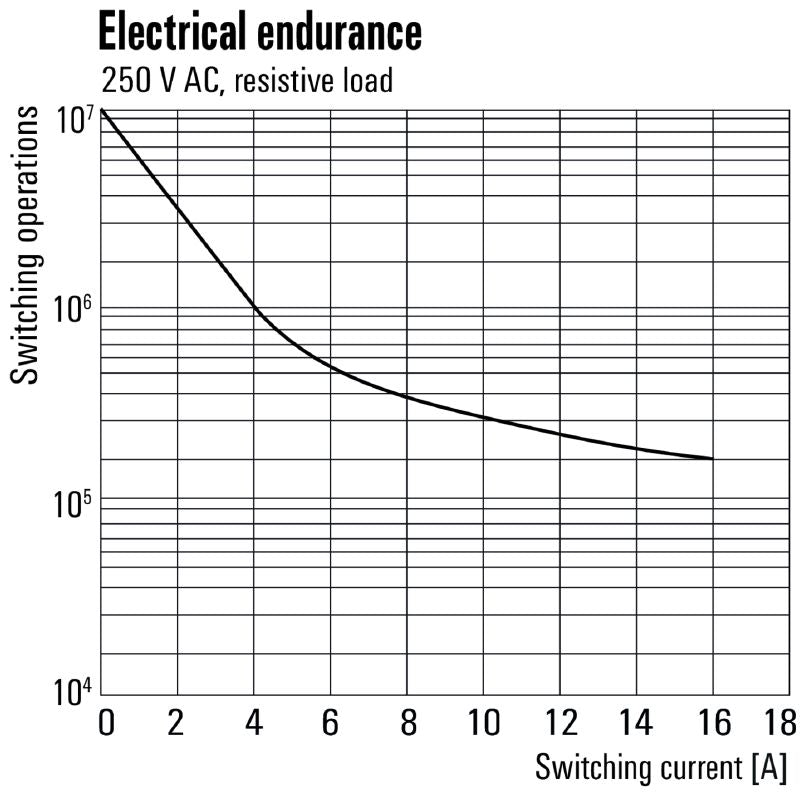

| Mechanical service life | 10 x 10^6 switching cycles |
| Rated voltage | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 4 mm |
| Dielectric strength for control side - load side | 2.5 kV eff / 1 min |
| Dielectric strength of neighbouring contacts | 2 kV eff / 1 min |
| Dielectric strength of open contact | 1.2 kV eff /1 min |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Protection degree | IP20 |
