2738690000 - Automatic RAILASSEMBLER, 5700mm & 650 Terminals/Hour

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

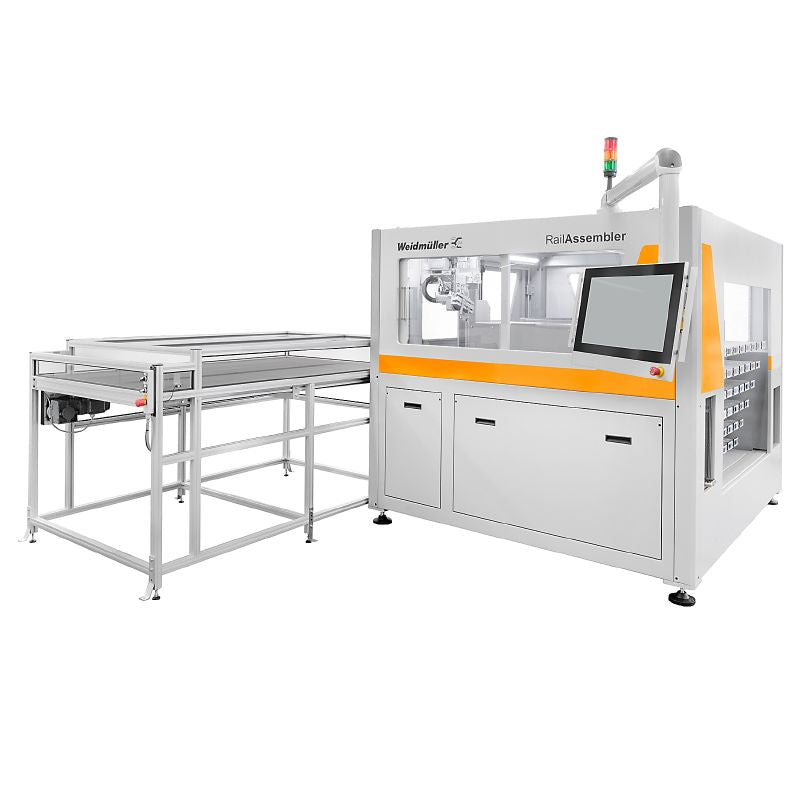

Introducing the RAILASSEMBLER, an innovative machine engineered for seamless automatic operations It requires a spacious footprint of 5700 x 5700 mm and has a robust weight of 2,500 kg This dependable device functions optimally in a temperature range of -10 °C to 40 °C Additionally, it adheres to environmental standards, including RoHS and REACH, ensuring no lead content Equipped with USB 20 and Ethernet interfaces, the RAILASSEMBLER connects easily to your systems.

It operates on a supply voltage of 400 V AC with a current draw of 16 A The machine is capable of handling operational pressures up to 6 bar while needing an air supply ranging from 5 to 10 bar Impressively, it can produce up to 650 terminals per hour, making it a top choice for efficient automation.

Features and Benefits:

•Support for a maximum of 20 mounting rails in the mounting rail magazine.

•Allows for up to 48 component magazines in the component magazine store.

•Capable of handling terminal widths ranging from 40 mm to 110 mm.

•Permissible height of terminals spans from 20 mm to 80 mm.

•Permissible thickness of terminals ranges from 2.5 mm to 16 mm.

•Compatibility with DIN Rail TS35/7.5 and TS35/15 in both perforated and unperforated formats.

•Actuation of inspection flaps possible with a special screwdriver.

Specifications:
