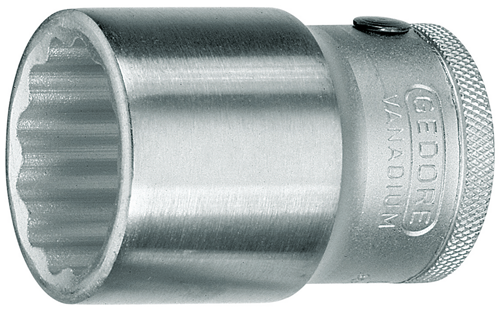

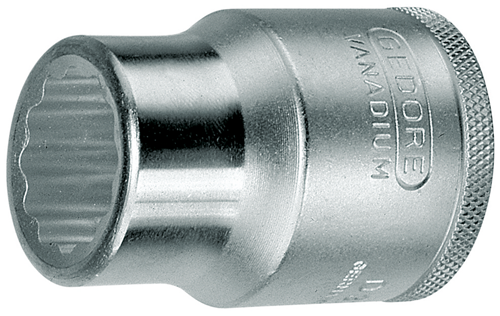

27240 - 27mm Socket Wrench Insert, 3/4" Vanadium Steel, Non-Slip Design
27240 - 27mm Socket Wrench Insert, 3/4" Vanadium Steel, Non-Slip Design
SKU: SKU: 27240
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust 3/4" socket wrench insert with a UD profile, measuring 27 mm Crafted in compliance with DIN 3124 and ISO 2725-1 standards, this tool showcases a square drive that meets DIN 3120 - D 20 and ISO 1174 specifications Featuring a manually operated design with non-slip cross knurling, it ensures a secure grip during use Made from high-quality vanadium steel (31CrV3) and coated with a matte chromium finish, this insert is built to withstand rigorous use while offering exceptional functionality.
Features and Benefits:
•Complies with DIN 3124 and ISO 2725-1 standards.
•Manually operated with non-slip cross knurling.
•Made from durable vanadium steel 31CrV3.
•Matt chromium-plated for resistance against corrosion.
Specifications:
| Total width [mm] | 39.6 |
| Total length [mm] | 54.5 |
| Net weight [kg] | 0.255 |
| Drive mount, square [metric] | 20.0 |
| Drive connector square [inch] | 3/4 |
| Standard | DIN 3124 ISO 2725-1 DIN 3120 – D 20 ISO 1174 |

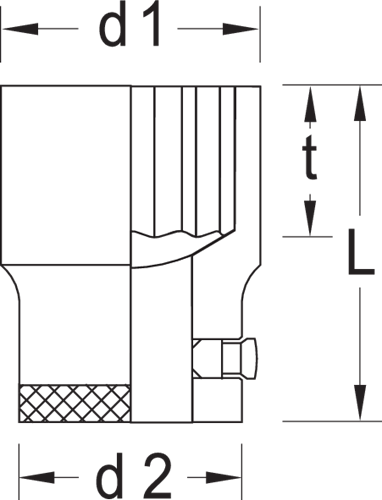

| Insert-Ø 1 | 39.6 |
| Insert-Ø 2 | 36.0 |
| Working length | 54.5 |
| Operating depth | 24.0 |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | Matt chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 27 |
| Safety | Locking pin |
