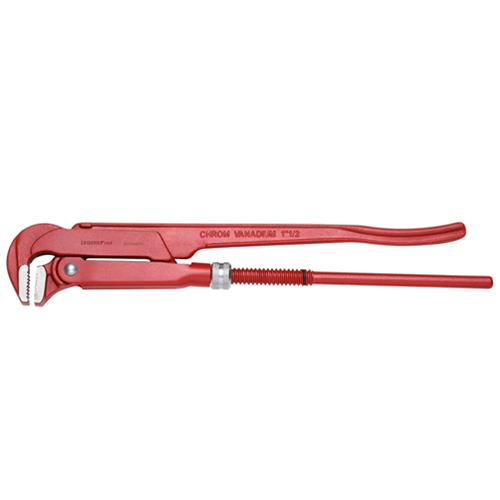

27100010 - Heavy-Duty 90° Tool with Polished Jaws, Chromium Vanadium Steel
27100010 - Heavy-Duty 90° Tool with Polished Jaws, Chromium Vanadium Steel
SKU: SKU: 27100010
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust tool crafted to meet DIN 5234 specifications, equipped with a 90° angled mouth for enhanced maneuverability Its uniquely offset teeth work efficiently against the direction of rotation, while the polished jaws facilitate smooth operation Constructed from durable chromium vanadium steel, this tool also features a captive adjusting nut for easy modifications Ideal for heavy-duty tasks, it promises reliability and performance.
Features and Benefits:
•Heavy-duty pattern tool.
•Mouth position at 90° angled.
•Teeth offset against the direction of rotation.
•Polished jaws for improved performance.
•Captive adjusting nut for convenience.
•Made from durable chromium vanadium steel.
Specifications:
| Total width [mm] | 65 mm |
| Total height [mm] | 23 mm |
| Total length [mm] | 320 mm |
| Design non-sparking | No |
| Standard | DIN 5234 - Form A |
| Material | Chrome-vanadium steel |
| Surface | Red powder-coated, jaws brightly ground |
| Compliance | compliant |
| Pipe-Ø [mm] | 40 mm |
| Clamping width [inch] | 1 |
| Clamping width [mm] | 40 mm |
