26720 - 1/4" Chrome-Vanadium Socket, UD-Profile, Durable Design
26720 - 1/4" Chrome-Vanadium Socket, UD-Profile, Durable Design
SKU: SKU: 26720
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

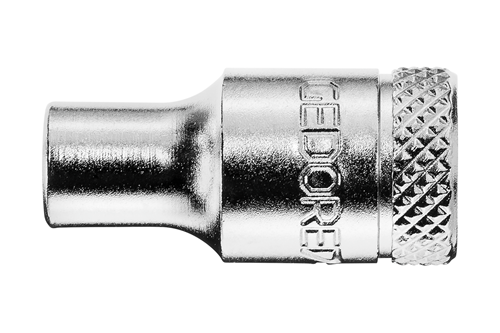

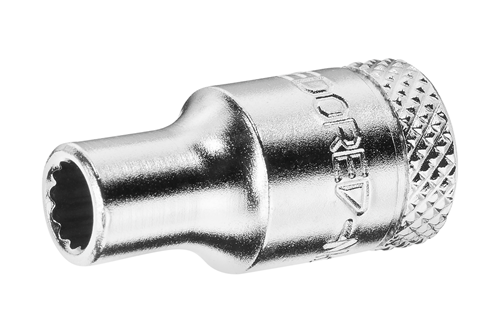

Introducing the 1/4" UD-Profile Socket, featuring a 14 mm diameter and crafted in accordance with DIN 3124 and ISO 2725-1 standards This socket is equipped with a square drive aligned with DIN 3120 - C 63 and ISO 1174 specifications, ensuring a secure fit with its ball retention groove Designed for hand operation, it boasts a knurled surface that provides excellent grip during use Made from resilient chrome-vanadium steel and finished with a matte chrome plating, this tool is built for long-lasting performance and durability.
Features and Benefits:
•Designed according to DIN 3124 and ISO 2725-1 standards.
•Square drive with ball retention groove.
•Knurled for good grip.
•Made from chrome-vanadium steel.
•Matt chrome-plated for enhanced durability.
Specifications:
| Total width [mm] | 20 mm |
| Total height [mm] | 20 mm |
| Total length [mm] | 25 mm |
| Net weight [kg] | 0.036 kg |
| Drive mount, square [metric] | 6.3 mm |
| Drive connector square [inch] | 1/4" |
| Standard | DIN 3124 ISO 2725-1 DIN 3120 – C 6,3 ISO 1174 |

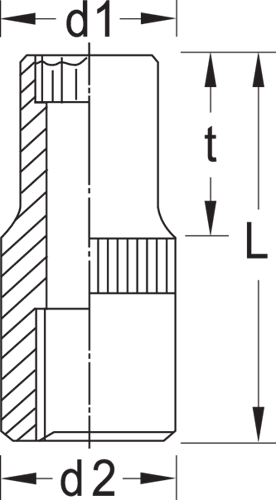

| Insert-Ø 1 | 19.7 mm |
| Insert-Ø 2 | 18.0 mm |
| Working length | 25.0 mm |
| Operating depth | 11.0 mm |
| Material | Chrome-vanadium steel |
| Surface | chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 14 |
| Safety | Ball Catching Cricket |
