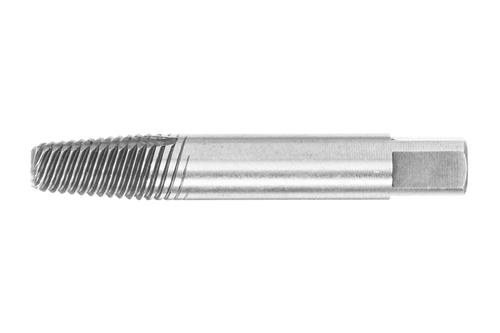

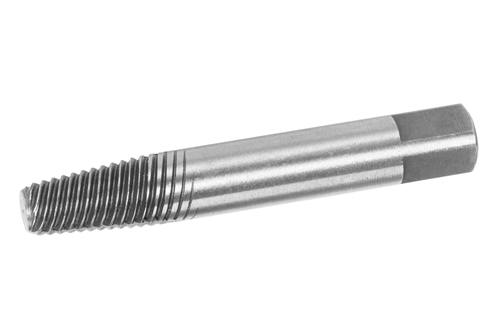

2659409 - Size 5 Screw Extractor, Chrome Vanadium Steel for Broken Screws
2659409 - Size 5 Screw Extractor, Chrome Vanadium Steel for Broken Screws
SKU: SKU: 2659409
Couldn't load pickup availability
Description:
Effortlessly tackle the task of removing broken screws, bolts, and tube ends with this innovative tool Crafted from chrome vanadium steel and tempered for enhanced durability, it boasts a hardness rating of 54-56 HRC Thanks to its newly designed cross-sectional geometry, the tool requires minimal extraction force torque, making your work easier With an optimized thread length, it achieves a reduced drilling depth, ensuring greater safety for both the user and components.
This versatile tool is an excellent addition to your toolkit and will save you valuable time on various applications.
Features and Benefits:
•For removing broken screws, bolts and tube ends.
•Chrome vanadium steel, 54-56 HRC, quenched and tempered.
•Minimum extraction force torque thanks to the new cross-sectional geometry.
•Reduced drilling depth thanks to an optimised thread length.
•Greater safety for user and component alike.
•Larger application range, time-saving.
•Removing broken screws, bolts and tube ends.
Specifications:
| Drive connector square [metric] | 9 mm |
| Bore Ø [mm] | 8,5 mm |
| Diameter range [mm] | 8,5 - 21,0 mm |
| for thread (metric) | M14 - M18 |
| for thread (inch) | 9/16" - 3/4" |
| Hardness [HRC] | 54-56 HRC |
| Material | Chrome-vanadium steel |
| Total width [mm] | 11 mm |
| Total height [mm] | 11 mm |
| Total length [mm] | 69 mm |
