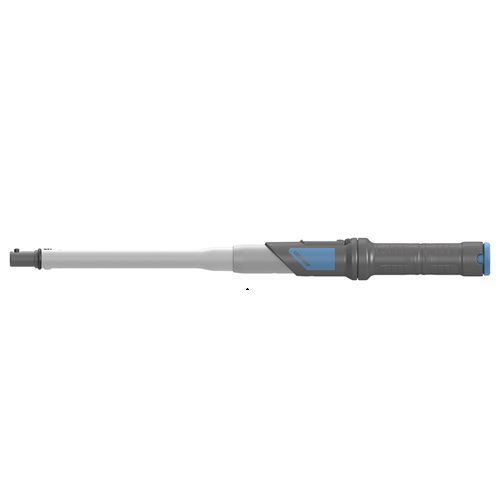

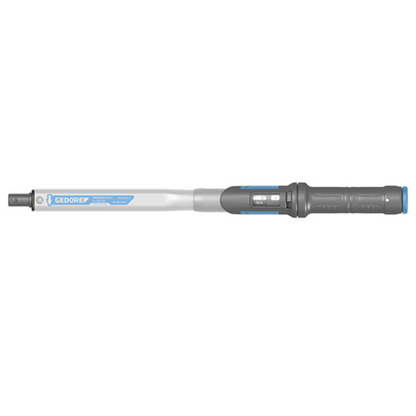

2641569 - Precision Torque Wrench 150-750 Nm, Ergonomic Grip
2641569 - Precision Torque Wrench 150-750 Nm, Ergonomic Grip
SKU: SKU: 2641569
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

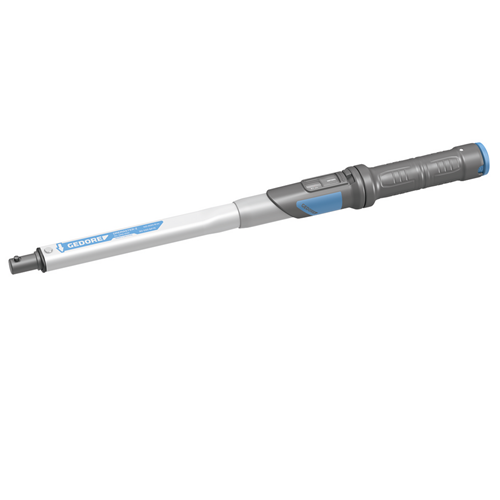

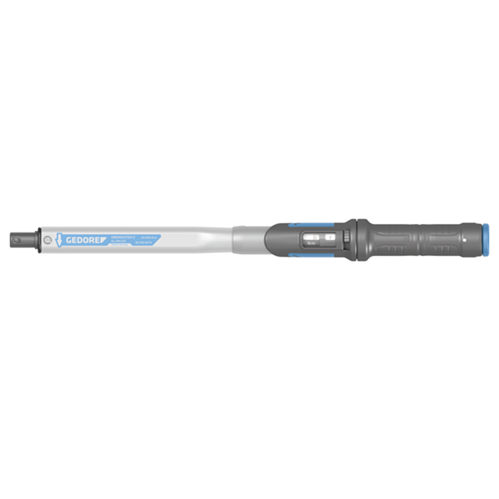

Achieve precise screw tightening with this robust tubular torque wrench, capable of handling torque ranges from 150 to 750 Nm (110 to 550 lbf·ft) Ideal for both industrial applications and trades, this adjustable tool features a spigot end and complies with the stringent DIN EN ISO 6789-2:2017 Type II Class A standards, accompanied by a traceable test certificate It boasts superior accuracy, with a maximum deviation of just +/- 3%, exceeding the standard requirement of +/- 4%.

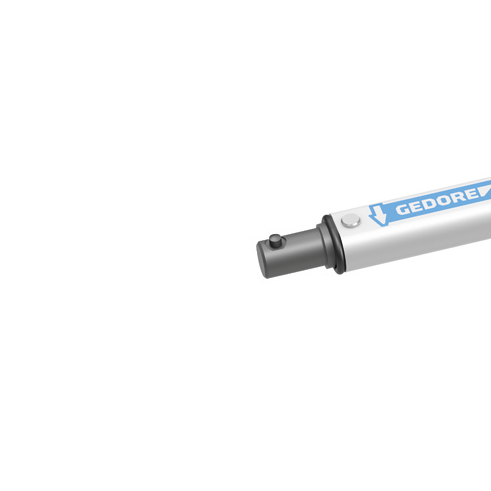

Designed for controlled right-hand and left-hand fastening, its durable varnished tubular steel body includes a phosphated spigot end available in Ø 16 mm or Ø 22 mm, complemented by high-quality plastic components The ergonomically designed plastic handle incorporates a calibration aid for ease of use
Effortlessly switch between the primary Nm scale and the lbf·ft auxiliary scale to minimize reading errors when determining the desired torque.
The built-in micrometer scale allows for setting interim torque values A distinctive release system provides both tactile and audible signals, ensuring user-friendly adjustments The tool is designed for fast settings with a hexagon Allen key (not included) and features a secured system for accurate adjustments.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate.
•Calibrated to a maximum permissible deviation of +/- 3 %.
•Sturdy, varnished tubular steel construction with phosphated spigot end.
•Ergonomically shaped plastic handgrip with calibration aid.
•Change-over between Nm main scale and lbf·ft ancillary scale to avoid reading errors.
•With micrometre scale for main Nm scale for setting interim values.
•Release system triggers tactile and audible signal.
•Ergonomic system for torque adjustment with reference symbol.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:
| Drive type/drive | Drive pin |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Receptacle width [mm] | 22 mm |
| Torque (max.) [lbf·ft] | 550 lbf·ft |
| Torque (min.) [lbf·ft] | 110 lbf·ft |
| Torque (max.) [Nm] | 750 Nm |
| Torque (min.) [Nm] | 150 Nm |
| Fixed setting | No |
| Lever length drive side [mm] | 56 mm |
| Lever length handle side [mm] | 1137.7 mm |
| Calibration length | 1121.7 mm |
| Material | Tubular steel construction, top-grade plastic parts |
| vernier Nm | 1 Nm |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Ball safety device |
| Graduation [lbf·ft] | 10 lbf·ft |
| Scale division [Nm] | 10 Nm |
| Depth gauge [metric] | 56.0 mm |
