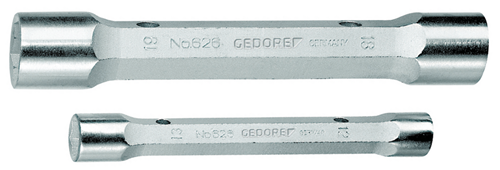

26360 - Chrome-Plated 17x19mm Hexagon Double Ended Socket Spanner
26360 - Chrome-Plated 17x19mm Hexagon Double Ended Socket Spanner
SKU: SKU: 26360
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the versatile double-ended socket spanner featuring solid hexagonal heads in sizes 17x19 mm Compliant with DIN 896, Form A, ISO 2236, and ISO 1085 standards, this tool is engineered for efficiency with a hex shaft and holes allowing for easy turning with a spanner or a tommy bar Note that the 6x7 mm and 8x9 mm variants do not include holes Crafted from high-quality vanadium steel (31CrV3) and finished with a chrome plating, this spanner promises durability and performance for all your mechanical tasks.
Features and Benefits:
•Hexagon shaft with holes for versatile use.
•Constructed from durable vanadium steel 31CrV3.
•Chrome-plated surface for corrosion resistance.
•Compliant with industry standards including DIN 896, ISO 2236, ISO 1085.

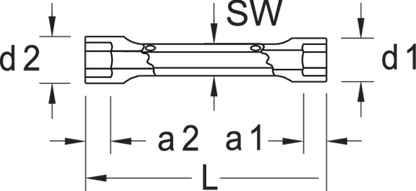

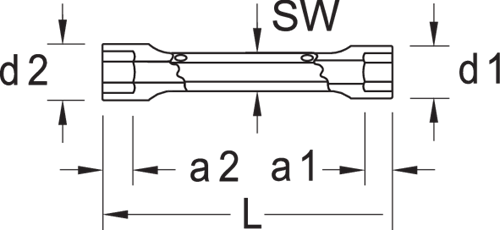

Specifications:
| Total length [mm] | 165 mm |
| Net weight [kg] | 0.233 kg |
| Drive connector hexagon [metric] | 18.0 mm |
| Diameter 1 [mm] | 23.0 |
| Insertion depth 1 | 14.0 mm |
| Insertion depth 2 | 17.5 mm |
| Diameter of head 1 | 23 mm |
| Diameter of head 2 | 26 mm |
| Material | 31CrV3 |
| Surface | chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 17 x 19 |
