26280 - 16x17mm Chrome-Plated Double Ended Socket Spanner
26280 - 16x17mm Chrome-Plated Double Ended Socket Spanner
SKU: SKU: 26280
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

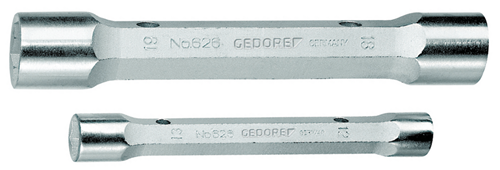

Experience versatility with this high-quality double-ended socket spanner, featuring a robust hexagon design measuring 16x17 mm Crafted in accordance with DIN 896, Form A, ISO 2236, and ISO 1085 standards, this tool is equipped with a hexagonal shaft and dedicated holes for easy turning using a spanner or a tommy bar (model numbers 626 S / 26 RS-626 S are sold separately) Additionally, the socket spanner is available in sizes 6x7 mm and 8x9 mm without a hole.
Made from durable vanadium steel (31CrV3) and finished with chrome plating, it combines longevity with a sleek appearance Perfect for professional mechanics and DIY enthusiasts alike!.
Features and Benefits:
•Hexagon shaft with holes for turning with spanner or tommy bar.
•Made of vanadium steel 31CrV3, chrome-plated.
•Complies with DIN 896, Form A, ISO 2236, ISO 1085 standards.

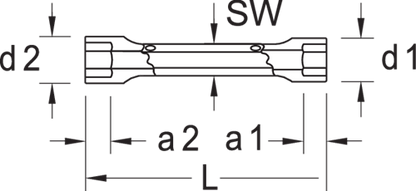

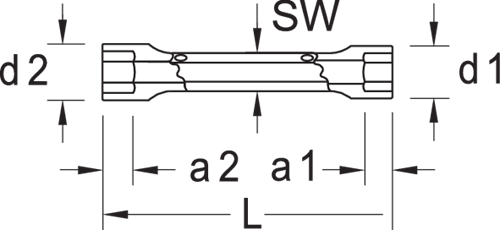

Specifications:
| Total length [mm] | 155 mm |
| Drive connector hexagon [metric] | 16.0 mm |
| Diameter 1 [mm] | 22.0 |
| Insertion depth 1 | 13.0 mm |
| Insertion depth 2 | 14.0 mm |
| Diameter of head 1 | 22 mm |
| Diameter of head 2 | 23 mm |
| Material | 31CrV3 |
| Surface | chrome-plated |
| Compliance | compliant |
| Width across flats 1 [mm] | 16 x 17 |
