2604700000 - Red Wire-End Ferrules, 3.9mm Collar, 16mm Length (Pack of 4000)
2604700000 - Red Wire-End Ferrules, 3.9mm Collar, 16mm Length (Pack of 4000)
SKU: SKU: 2604700000 Download PDF
- 2604700000 - Red Wire-End Ferrules, 3.9mm Collar, 16mm Length (Pack of 4000)
- 2604700000 - Red Wire-End Ferrules, 3.9mm Collar, 16mm Length (Pack of 4000)
Couldn't load pickup availability
Description:

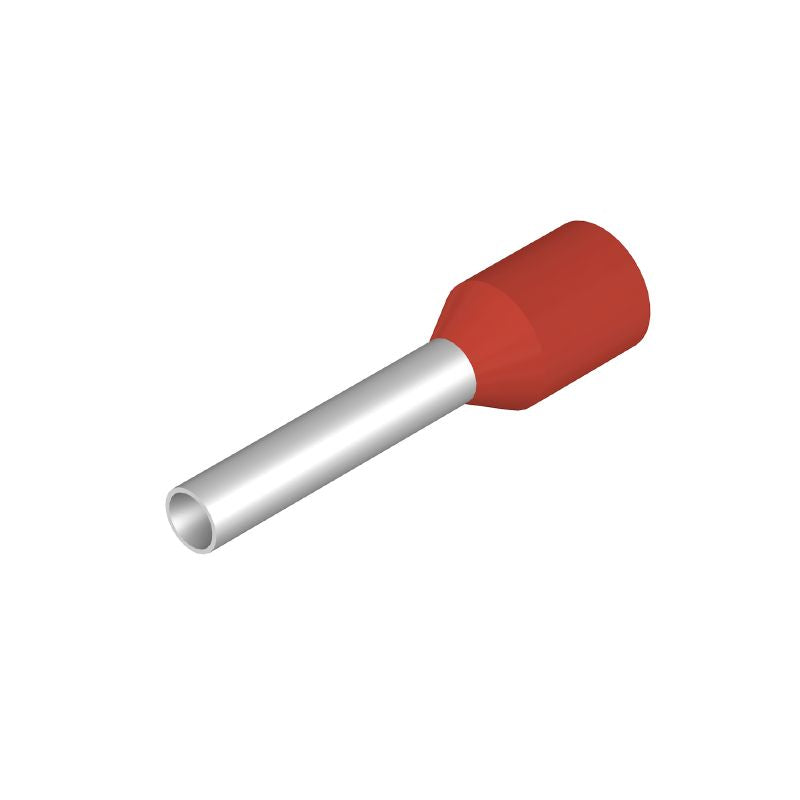

Introducing our vibrant red wire-end ferrules, conveniently supplied on a reel for effortless handling These ferrules are specifically tailored for standard applications, featuring a collar diameter of 39 mm, making them compatible with conductor cross-sections of 15 mm² They are equipped with a contact surface that measures 17 mm in diameter and extend to a length of 10 mm, while the overall length reaches 16 mm.
Constructed with a metal sleeve of 015 mm thickness, they also include a robust plastic collar measuring 025 mm thick For optimal performance, a stripping length of 12 mm is recommended, and they can connect wires up to a maximum cross-section of AWG 16 Perfect for any wiring project, these ferrules blend functionality with reliability.
Features and Benefits:
•Offered in a pack of 4000 items.
•Compliant with RoHS regulations without any exemptions.
•No SVHC found above 0.1 wt%.
Specifications:
| Collar diameter (D2) | 3.9 mm |
| Contact surface diameter (D1) | 1.7 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 16 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 12 mm |
| Conductor cross-section | 1.5 mm² |
| Wire connection cross section AWG, max. | AWG 16 |
| GTIN (EAN) | 4050118649505 |
| ROHS Compliance Status | Compliant without exemption |
