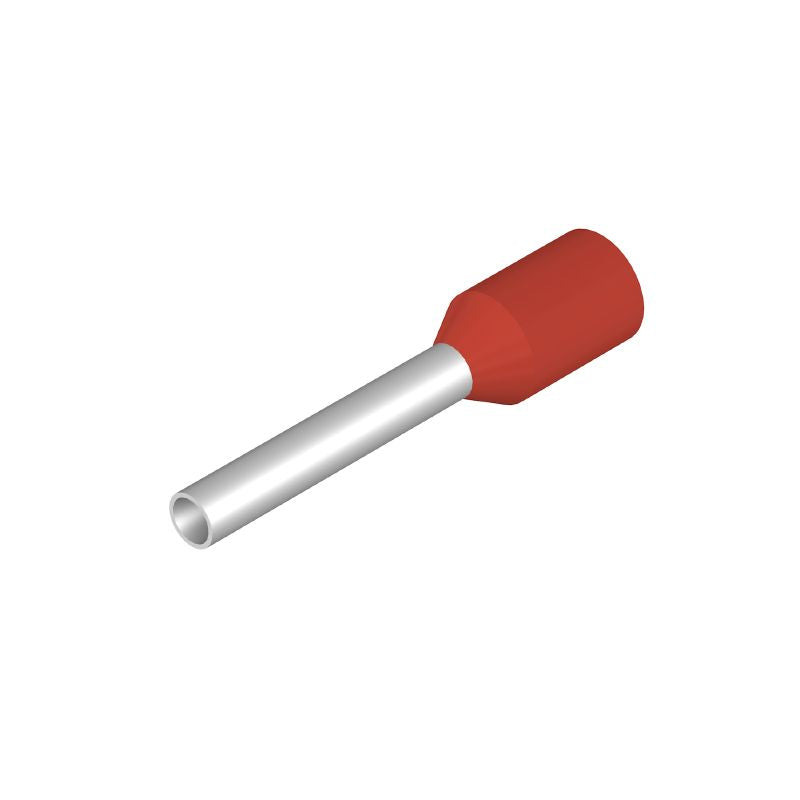

2604690000 - Red Wire-End Ferrules 16mm, 3.5mm Diameter, 10mm Length (Pack of 4000)
2604690000 - Red Wire-End Ferrules 16mm, 3.5mm Diameter, 10mm Length (Pack of 4000)
SKU: SKU: 2604690000 Download PDF
- 2604690000 - Red Wire-End Ferrules 16mm, 3.5mm Diameter, 10mm Length (Pack of 4000)
- 2604690000 - Red Wire-End Ferrules 16mm, 3.5mm Diameter, 10mm Length (Pack of 4000)
Couldn't load pickup availability
Description:
Optimize your connections with these red wire-end ferrules conveniently packaged on a reel Constructed to meet standard specifications, each ferrule features a collar diameter of 35 mm and accommodates a conductor cross-section of 1 mm² The contact surface measures 14 mm in diameter with a length of 10 mm, while the total ferrule length is 16 mm The robust metal sleeve has a thickness of 015 mm, complemented by a plastic collar that is 0.
25 mm thick For effective installation, a stripping length of 12 mm is required, and these ferrules can connect wires with a maximum cross-section of AWG 18.
Features and Benefits:
•Wire-end ferrules come on a convenient reel.
•Specification compliance with RoHS and no SVHC above 0.1 wt%.
Specifications:
| Collar diameter (D2) | 3.5 mm |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 16 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 12 mm |
| Conductor cross-section | 1 mm² |
| Wire connection cross section AWG, max. | AWG 18 |
| RoHS Compliance Status | Compliant without exemption |
| Net weight | 0.163 g |
