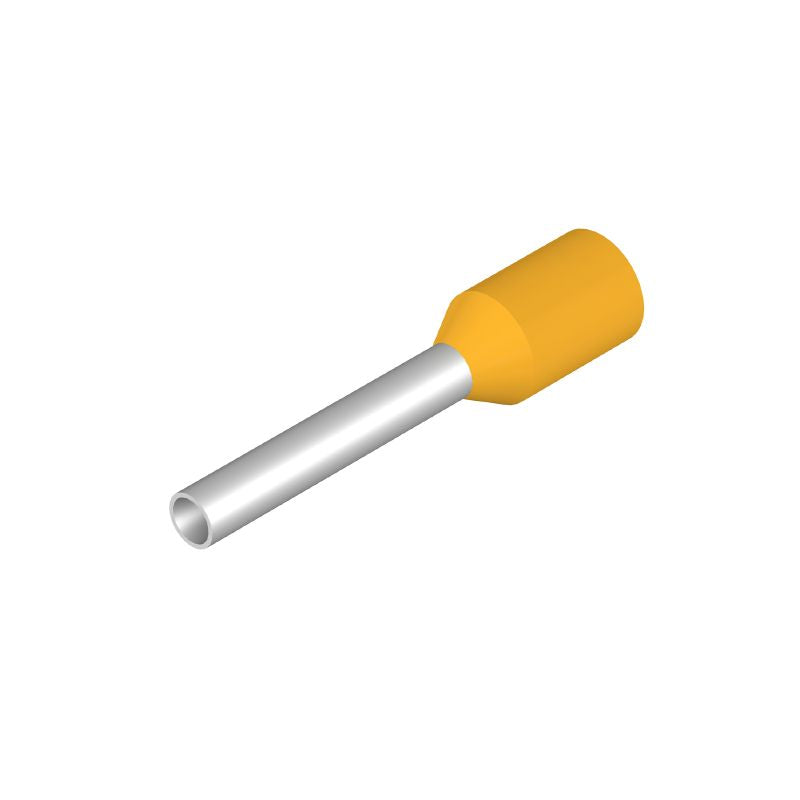

2604680000 - Yellow RoHS Wire-end Ferrules, 12mm Length, 1mm² Cross-section (Pack of 4000)
2604680000 - Yellow RoHS Wire-end Ferrules, 12mm Length, 1mm² Cross-section (Pack of 4000)
SKU: SKU: 2604680000 Download PDF
- 2604680000 - Yellow RoHS Wire-end Ferrules, 12mm Length, 1mm² Cross-section (Pack of 4000)
- 2604680000 - Yellow RoHS Wire-end Ferrules, 12mm Length, 1mm² Cross-section (Pack of 4000)
Couldn't load pickup availability
Description:
Introducing our yellow wire-end ferrules, conveniently packaged on a reel These ferrules meet RoHS compliance standards without needing any exemptions and are free from SVHCs exceeding 01% Each ferrule features a collar diameter of 35 mm and accommodates a conductor cross-section of 1 mm² The contact area has a diameter of 14 mm and measures 10 mm in length, while the overall length reaches 16 mm The metal sleeve is crafted with a thickness of 0.
15 mm, and the accompanying plastic collar is 025 mm thick For optimal performance, a stripping length of 12 mm is specified, with a maximum wire connection cross-section of AWG 18.
Features and Benefits:
•RoHS compliant without exemption.
•Packaged on a reel for ease of use.
•Color-coded for convenience.
Specifications:
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 16 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| Conductor cross-section | 1 mm² |
| GTIN (EAN) | 4050118649475 |
| Net weight | 0.13 g |
