2604630000 - White Wire-End Ferrule, 16mm Length, 2.9mm Diameter (Pack of 4000)
2604630000 - White Wire-End Ferrule, 16mm Length, 2.9mm Diameter (Pack of 4000)
SKU: SKU: 2604630000 Download PDF
- 2604630000 - White Wire-End Ferrule, 16mm Length, 2.9mm Diameter (Pack of 4000)
- 2604630000 - White Wire-End Ferrule, 16mm Length, 2.9mm Diameter (Pack of 4000)
Couldn't load pickup availability
Description:

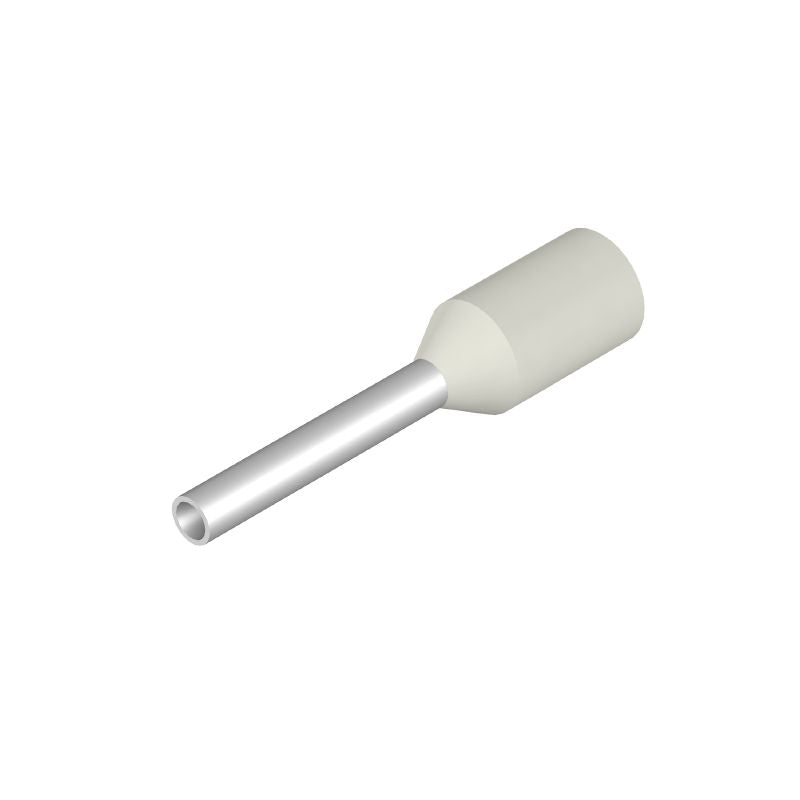

Introducing our wire-end ferrule, presented on a convenient reel in a striking white shade Perfect for standard applications, this ferrule features a collar diameter of 29 mm and meets RoHS compliance, ensuring it is free from any SVHC above the designated limit Each ferrule accommodates a conductor cross-section of 05 mm² and supports connections up to AWG 20
With a contact surface diameter of 1 mm, its overall length reaches 16 mm, while the effective length is 10 mm.
The design incorporates a robust metal sleeve with a thickness of 015 mm, paired with a plastic collar measuring 025 mm in thickness For optimal performance, a stripping length of 12 mm is required Ideal for a variety of electrical applications, this ferrule is both reliable and efficient.
Features and Benefits:
•Compliant with RoHS regulations.
•Wire-end ferrules supplied on a reel.
•Suitable for standard applications.
•Color-coded according to DIN standards.
Specifications:
| Collar diameter (D2) | 2.9 mm |
| Conductor cross-section | 0.5 mm² |
| Contact surface diameter (D1) | 1 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 16 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 20 |
| GTIN (EAN) | 4050118649437 |
| Order No. | 2604630000 |
