Description:

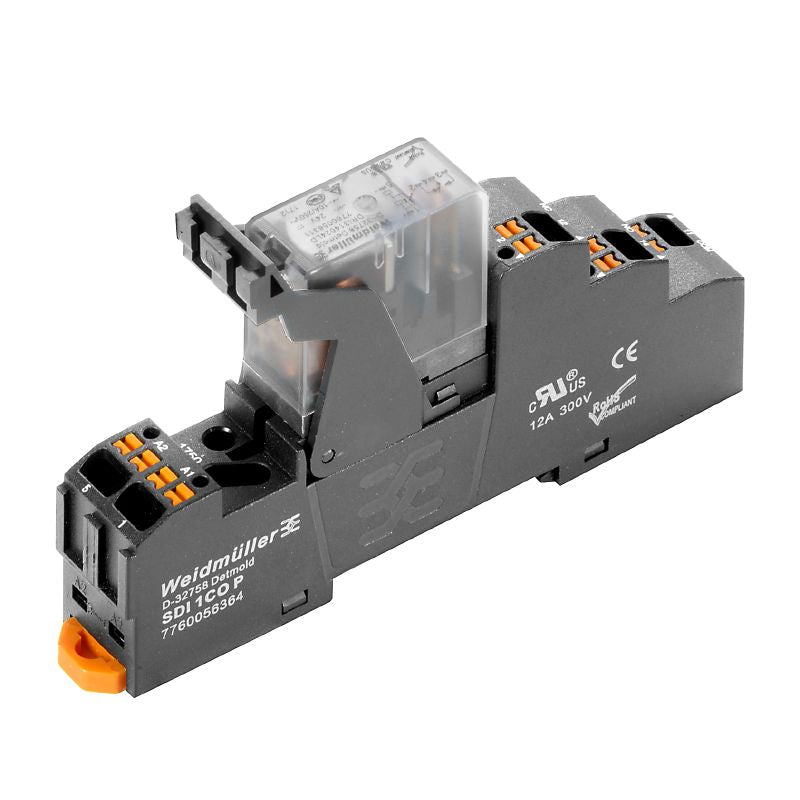

Introducing the DRIKITP relay module, tailored for applications requiring a single changeover contact (1 CO) and operating at a control voltage of 115 V AC This module supports a continuous current capacity of 10 A and utilizes a PUSH IN connection method for easy installation Please note that a test button is not included in this model, making it a streamlined option for your relay needs.
Features and Benefits:
•ROHS compliant.
•General ordering data indicates it functions efficiently within specified parameters.
•Compact design suitable for installation in a TS 35 mounting rail.
Specifications:

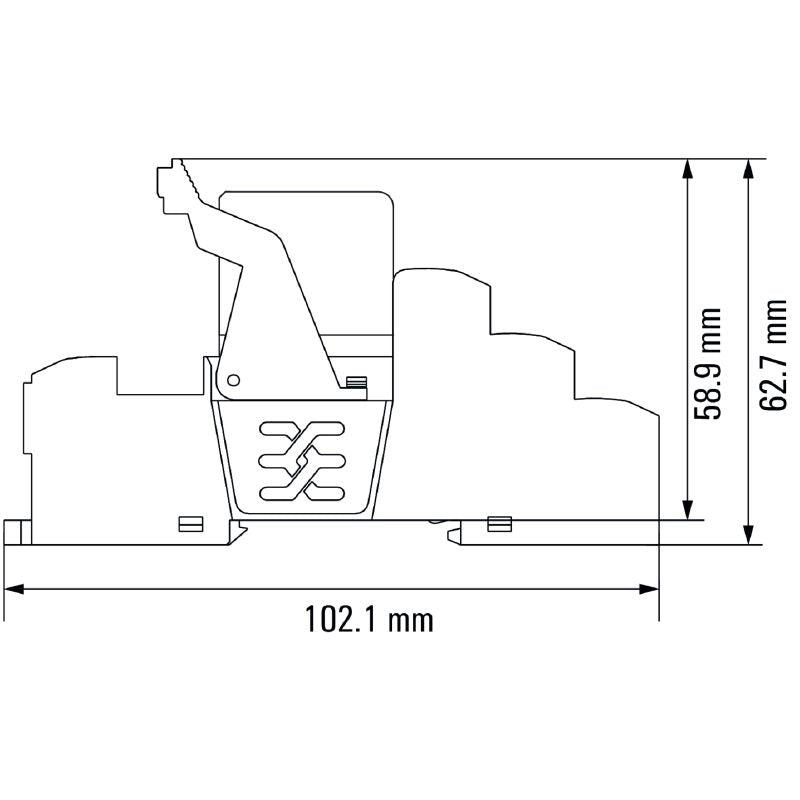

| Depth | 63 mm |
| Height | 102.1 mm |
| Width | 15.9 mm |
| Storage temperature | -40 °C to 85 °C |
| Ambient temperature | -40 °C to 55 °C |
| Humidity | 35 to 85 % relative humidity, no condensation |
| Rated current AC | 9.3 mA |
| Power rating | 1.1 VA |
| Coil resistance | 6200 Ω ± 10 % |
| Status indicator | red LED |
| Rated switching voltage | 250 V AC |
| Continuous current | 10 A |
| Max. switching frequency at rated load | 0.1 Hz |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 250 V |
| Min. switching power | 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| AC switching capacity (resistive), max. | 2500 VA |

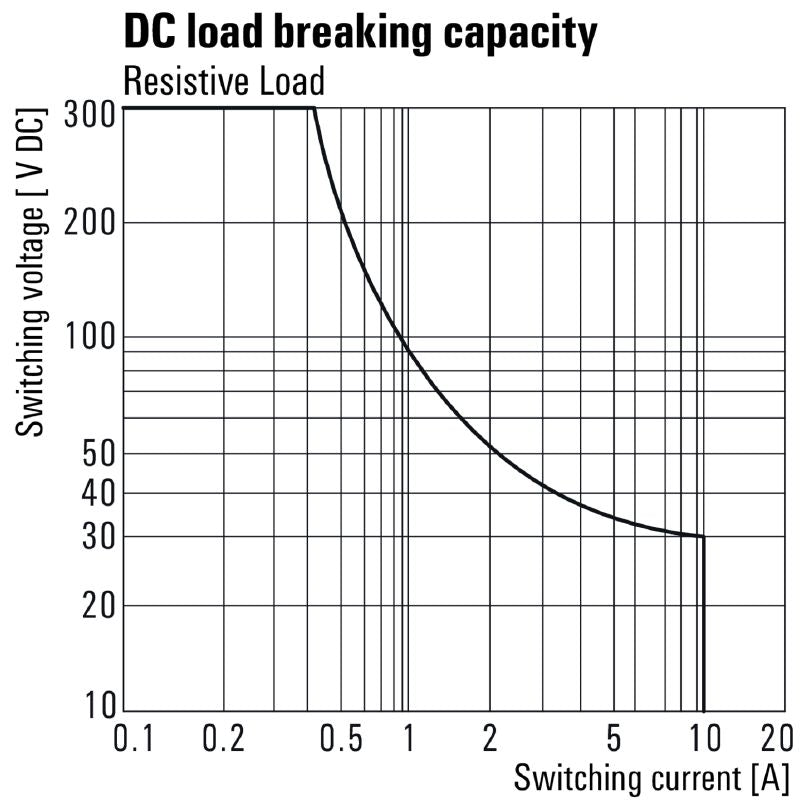

| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-on delay | ≤ 15 ms |
| Switch-off delay | ≤ 10 ms |

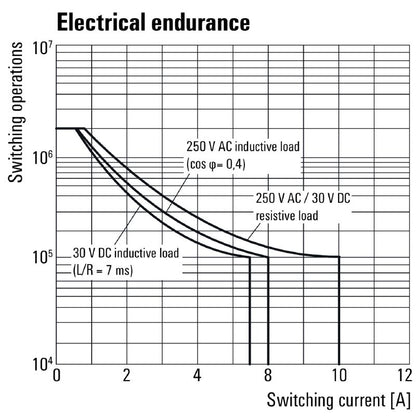

| Mechanical service life | 10 x 10^6 switching cycles |
| Insulation coordination | Rated voltage 300 V |
| Protection degree | IP20 |
| Wire connection method | PUSH IN |
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Clamping range, max. | 1.5 mm² |
| Blade size | 0.4 x 2.5 mm |
