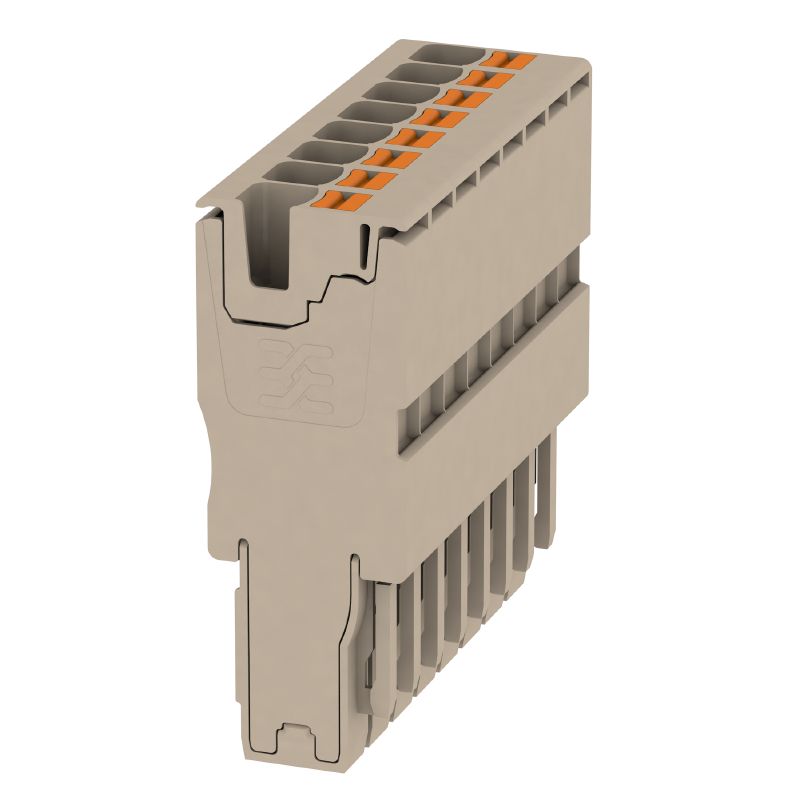

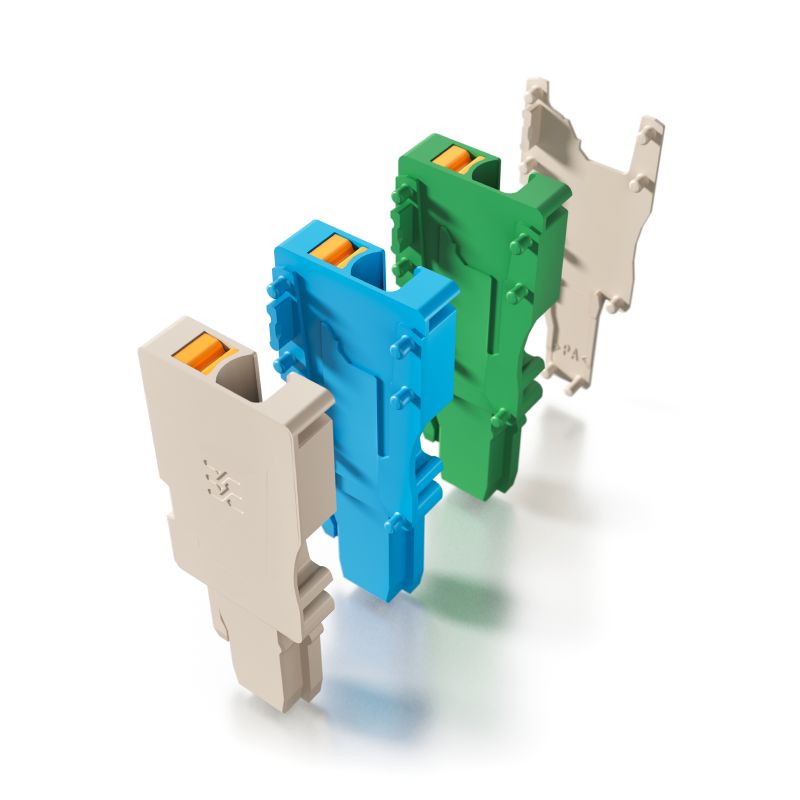

2540530000 - 8-Pole Dark Beige Plug, 50.95mm Deep, 800V, 32A (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the APG 4/8 plug, a reliable connection solution rated for 800 V and 32 A This plug features eight poles and comes in an elegant dark beige color, ensuring it blends seamlessly into various settings Measuring 5095 mm in depth, 19 mm in height, and 488 mm in width, it remains compact and lightweight at approximately 40876 g Built with a wide operating temperature range of -60 °C to 130 °C, this plug is engineered to meet stringent environmental and safety regulations, including RoHS compliance without exemptions, making it suitable for a variety of applications.

Features and Benefits:

•Compliant with RoHS standards.

•Closed open sides for safety.

•Composed of Wemid material.

•Rated to 800 V and 32 A.

•Suitable for both fine-stranded and solid core wire connections.

•UL 94 flammability rated V-0.

•Designed for a maximum clamping range of 4 mm².

Specifications:
