2534380000 - Dark Blue Push-In Feed-Through Terminal, 4 mm², 800V, 32A (Pack of 100)

2534380000 - Dark Blue Push-In Feed-Through Terminal, 4 mm², 800V, 32A (Pack of 100)

SKU: SKU: 2534380000   Download PDF

Select a Variant:
  • 2534380000 - Dark Blue Push-In Feed-Through Terminal, 4 mm², 800V, 32A (Pack of 100)
Qty:
Regular price Now $91.64   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $91.64 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

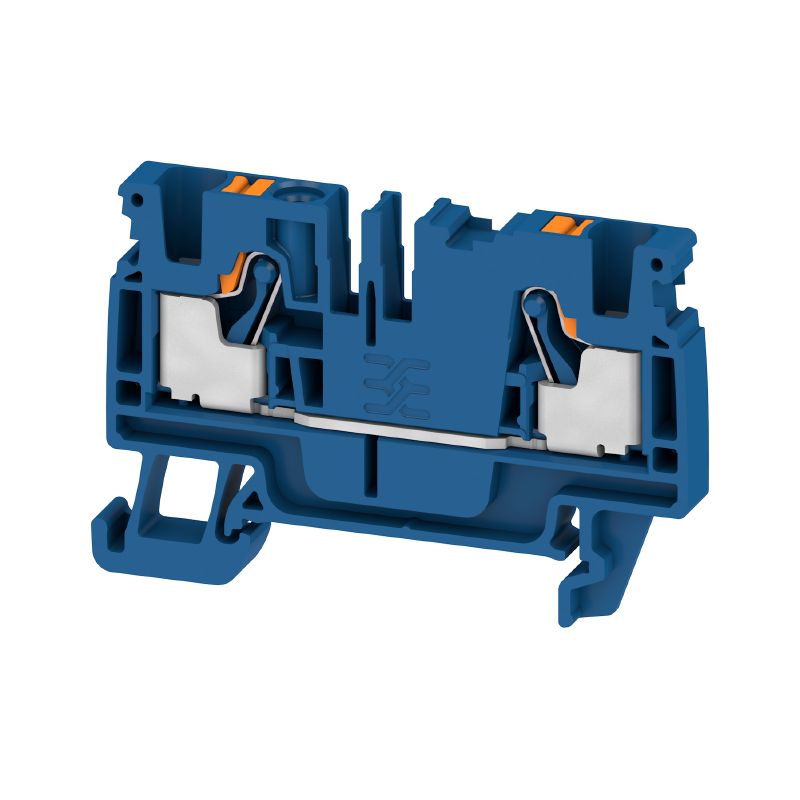

Introducing the A2C 4 DBL feed-through terminal, expertly designed for easy push-in connections compatible with 4 mm² wiring This robust terminal supports a maximum voltage of 800 V and manages currents of up to 32 A with ease Presented in a sophisticated dark blue hue, it adheres to RoHS standards for safety and environmental compliance With UL certifications E60693 and E184763, you can trust in its quality and reliability for your electrical needs.

Features and Benefits:

    •Push-in connection type.

    •Maximum operating temperature of 130 °C.

    •Explosion-tested version.

    •RoHS compliant without exemption.

    •Compact 39.5 mm depth.

    •Maximum clamping range of 6 mm².

Specifications:

 Dimensions (depth x height x width) 39.5 mm x 60 mm x 6.1 mm
 Storage temperature -25 °C to 55 °C
 Ambient temperature -5 °C to 40 °C
 Rated cross-section 4 mm²
 Rated voltage 800 V
 Nominal current 32 A
 Current at maximum wires 32 A
 UL 94 flammability rating V-0
 Current size B (CSA) 30 A
 Conductor size max (cURus) 10 AWG
 Conductor size min (cURus) 26 AWG
 Marking EN 60079-7 Ex eb II C Gb
 Number of connections 2
 Certificate No. (ATEX) TUEV16ATEX7909U
 Certificate No. (IECEX) IECEXTUR16.0036U
