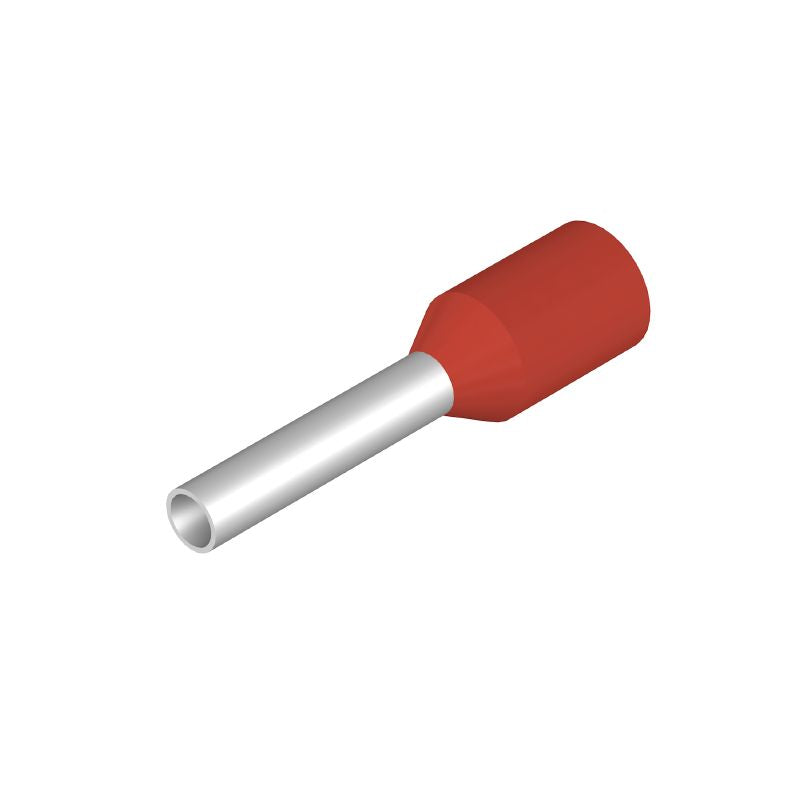

2528610000 - Red Wire-End Ferrules, 3.5mm Diameter, 14mm Length (Pack of 4000)
2528610000 - Red Wire-End Ferrules, 3.5mm Diameter, 14mm Length (Pack of 4000)
SKU: SKU: 2528610000 Download PDF
- 2528610000 - Red Wire-End Ferrules, 3.5mm Diameter, 14mm Length (Pack of 4000)
- 2528610000 - Red Wire-End Ferrules, 3.5mm Diameter, 14mm Length (Pack of 4000)
Couldn't load pickup availability
Description:
Enhance your electrical projects with these red wire-end ferrules, conveniently supplied on a reel These standard-grade ferrules have a collar diameter of 35 mm, making them suitable for a variety of conductor sizes With the capacity to accommodate a maximum conductor cross-section of 1 mm², they are designed for dependable electrical connections The contact surface measures 14 mm in diameter and features an 8 mm contact length.
The total length of each ferrule is 14 mm, while the metal sleeve has a thickness of 015 mm, complemented by a plastic collar thickness of 025 mm For best performance, a wire stripping length of 10 mm is recommended, catering to wire connections up to an AWG 18 size.
Features and Benefits:
•Compliant with RoHS standards.
•No SVHC present above 0.1 wt%.
•Wire-end ferrules are available in red color on a reel.
Specifications:
| Collar diameter (D2) | 3.5 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 18 |
