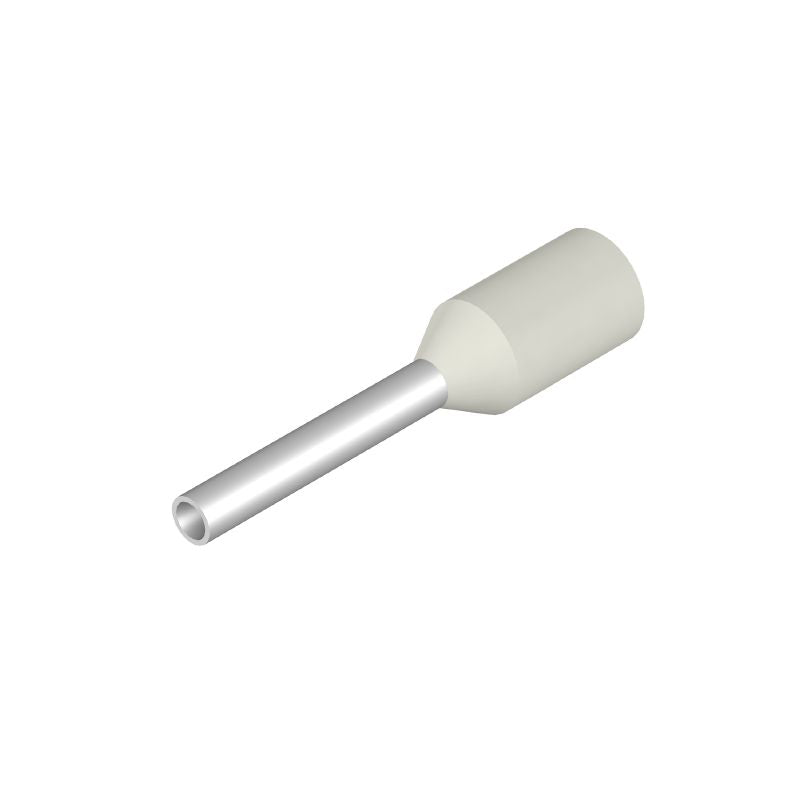

2528590000 - RoHS Compliant White Wire-End Ferrule, Standard 10mm (Pack of 4000)
2528590000 - RoHS Compliant White Wire-End Ferrule, Standard 10mm (Pack of 4000)
SKU: SKU: 2528590000 Download PDF
Select a Variant:
- 2528590000 - RoHS Compliant White Wire-End Ferrule, Standard 10mm (Pack of 4000)
- 2528590000 - RoHS Compliant White Wire-End Ferrule, Standard 10mm (Pack of 4000)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing our standard wire end ferrule, elegantly packaged on a convenient reel in a crisp white hue This product is fully compliant with RoHS regulations, ensuring it contains no substances of very high concern (SVHC) exceeding a weight percentage of 01 Perfect for a variety of applications, this ferrule combines functionality with environmental responsibility.
Features and Benefits:
•Wire end ferrules on reel.
•Compliant with RoHS regulations.
•Contains no SVHC above 0.1 wt%.
Specifications:
| Collar diameter (D2) | 2.9 mm |
| Conductor cross-section | 0.5 mm² |
| Contact surface diameter (D1) | 1 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 20 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
