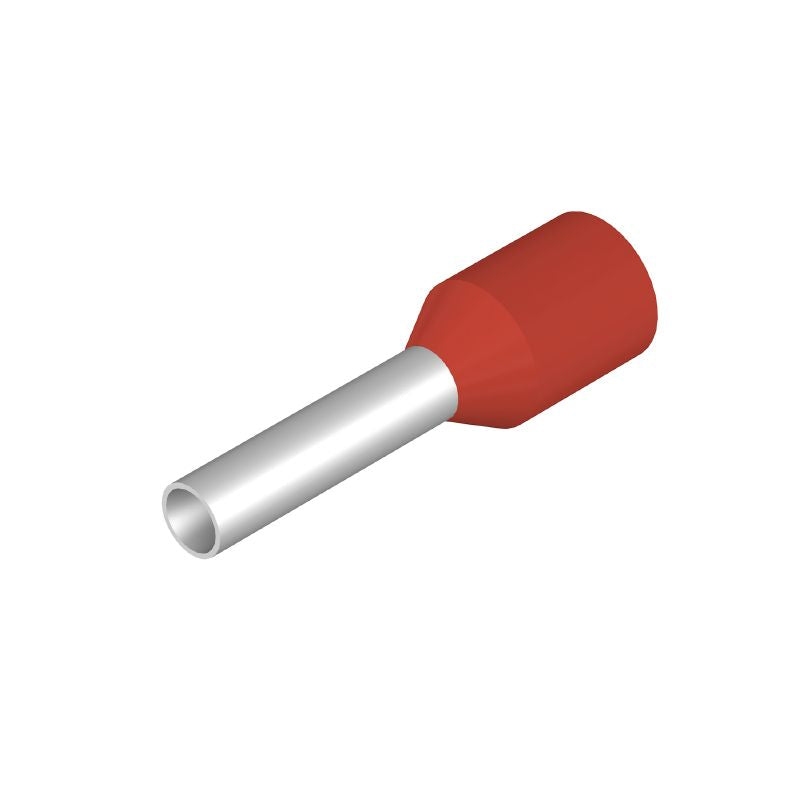

2528580000 - RoHS Compliant Red Wire-End Ferrules for Reels (Pack of 4000)
2528580000 - RoHS Compliant Red Wire-End Ferrules for Reels (Pack of 4000)
SKU: SKU: 2528580000 Download PDF
Select a Variant:
- 2528580000 - RoHS Compliant Red Wire-End Ferrules for Reels (Pack of 4000)
- 2528580000 - RoHS Compliant Red Wire-End Ferrules for Reels (Pack of 4000)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing our vibrant red wire-end ferrules, specially crafted for reel applications These standard ferrules meet RoHS compliance standards, guaranteeing they contain no hazardous substances above 01 weight percent Each unit is designed with strict adherence to environmental regulations, making them a reliable choice for your electrical connections.
Features and Benefits:
•Wire-end ferrules designed for reliable connections.
•Available in a red color for easy identification.
•Compliant with RoHS standards without exemption.
Specifications:
| Collar diameter (D2) | 3.9 mm |
| Conductor cross-section | 1.5 mm² |
| Contact surface diameter (D1) | 1.7 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| Approvals | ROHS Compliant |
| Net weight | 0.12 g |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
