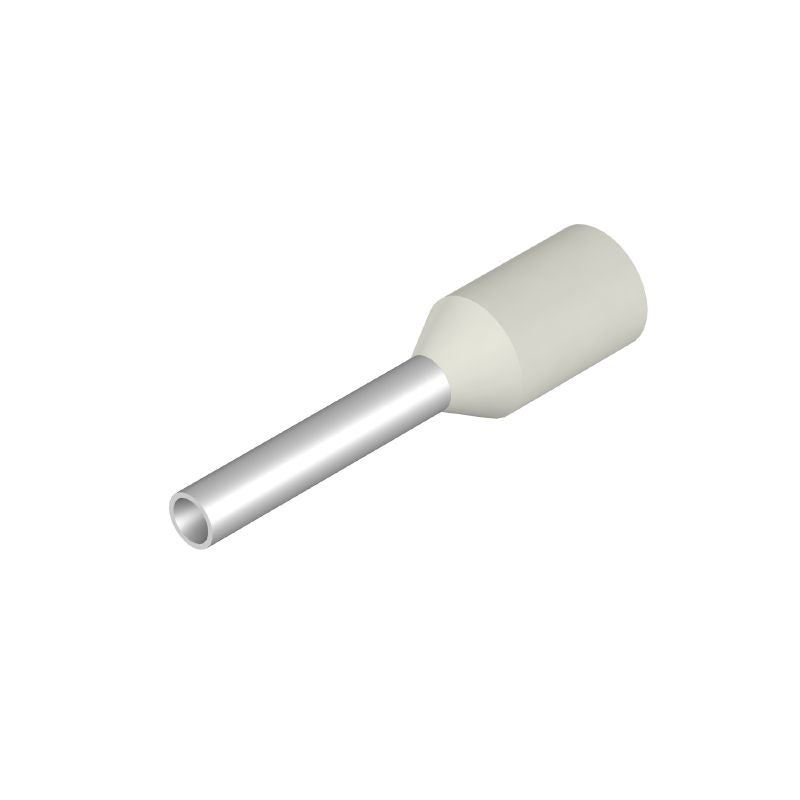

2528560000 - White Wire-End Ferrules for 0.75 mm² Conductors (Pack of 4000)
2528560000 - White Wire-End Ferrules for 0.75 mm² Conductors (Pack of 4000)
SKU: SKU: 2528560000 Download PDF
Select a Variant:
- 2528560000 - White Wire-End Ferrules for 0.75 mm² Conductors (Pack of 4000)
- 2528560000 - White Wire-End Ferrules for 0.75 mm² Conductors (Pack of 4000)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing a practical reel of wire-end ferrules in a clean white finish, crafted to meet standard application needs Each ferrule is specifically designed to accommodate a conductor cross-section of 075 mm², providing reliable and efficient connectivity for your electrical projects Perfect for a range of uses, these ferrules ensure a secure fit and optimal performance.
Features and Benefits:
•RoHS compliant without exemption.
•Compliant with REACH SVHC regulations.
Specifications:
| Collar diameter (D2) | 3.4 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 8 mm |
| Length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
