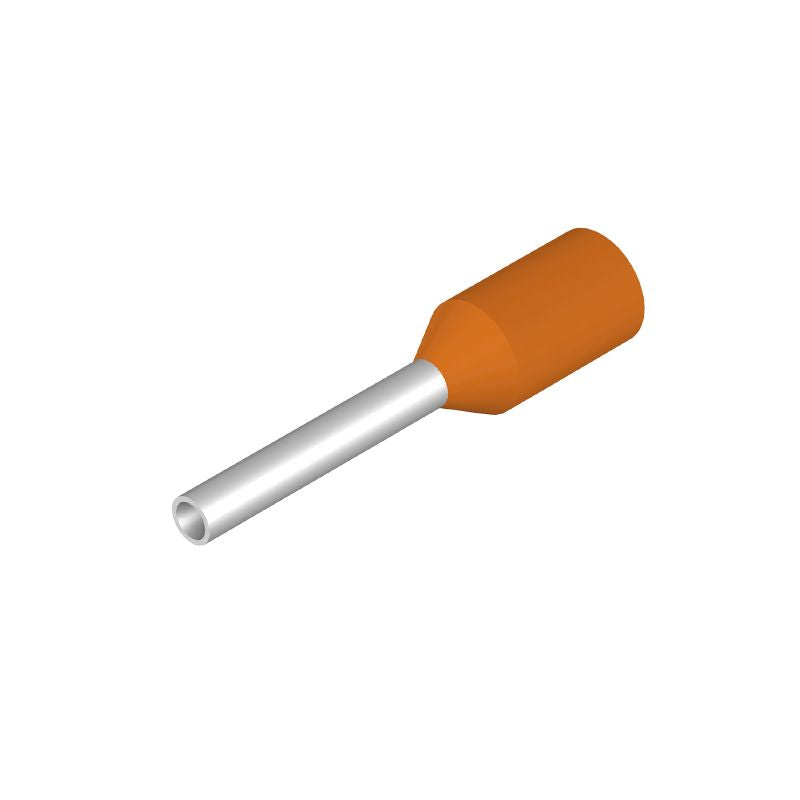

2528550000 - Orange Wire-End Ferrules, 2.9mm Diameter, 14mm Length (Pack of 4000)
2528550000 - Orange Wire-End Ferrules, 2.9mm Diameter, 14mm Length (Pack of 4000)
SKU: SKU: 2528550000 Download PDF
- 2528550000 - Orange Wire-End Ferrules, 2.9mm Diameter, 14mm Length (Pack of 4000)
- 2528550000 - Orange Wire-End Ferrules, 2.9mm Diameter, 14mm Length (Pack of 4000)
Couldn't load pickup availability
Description:
Introducing a practical solution for electrical connections: a reel of orange wire-end ferrules designed for reliable standard applications These ferrules are excellent for connecting conductors and meet RoHS compliance standards Featuring a collar diameter of 29 mm, they accommodate conductor cross-sections of 05 mm² The contact surface has a diameter of 1 mm and a length of 8 mm, while the total length of each ferrule measures 14 mm.
Constructed with a metal sleeve thickness of 015 mm and a plastic collar thickness of 025 mm, these ferrules require a 10 mm stripping length and can handle wire connections up to a maximum cross-section of AWG 20 Perfect for various wiring needs, they ensure a secure and efficient connection.
Features and Benefits:
•Color code by Weidmueller.
•Standard version suitable for various applications.
•RoHS compliant without exemption.
Specifications:
| Collar diameter (D2) | 2.9 mm |
| Conductor cross-section | 0.5 mm² |
| Contact surface diameter (D1) | 1 mm |
| Contact surface length (L2) | 8 mm |
| Length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max | AWG 20 |
| Net weight | 0.07 g |
| GTIN (EAN) | 4050118539066 |
| UL Certificate No. | E354986 |
