250-4 W/GRND PVC JACKET PVC
250-4 W/GRND PVC JACKET PVC
SKU: SKU:
- 250-4 W/GRND PVC JACKET PVC
- 250-4 W/GRND PVC JACKET PVC
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
| Technical Specifications: | |
| Phase Conductor Size AWG: | 250-4 |
| Base Neutral Messenger Size AWG: | 4 Bare |
| Diameter Steel Core (Inches): | 1.913 |
| Weight Per 1000ft Total (Lbs.): | 4086 |
| Allowable Ampacity 75C (Amps): | 255 |
| Allowable Ampacity 90C (Amps): | 290 |
APPLICATIONS
Armorlite ® Type MC Cable - "flame retardant sunlight resistant PVC Jacket" is suitable for use as follows:
- Direct burial applications, installation in concrete and where exposed to cinder fills, strong chlorides, caustic alkalis, or vapors of chlorine or of hydrochloric acids.
- Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
- Power, lighting, control, and signal circuits.
- Fished or embedded in plaster.
- Concealed or exposed installations
- Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
- As aerial cable on a messenger.
- Installation in cable tray and approved raceways.
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
- Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
CONSTRUCTION

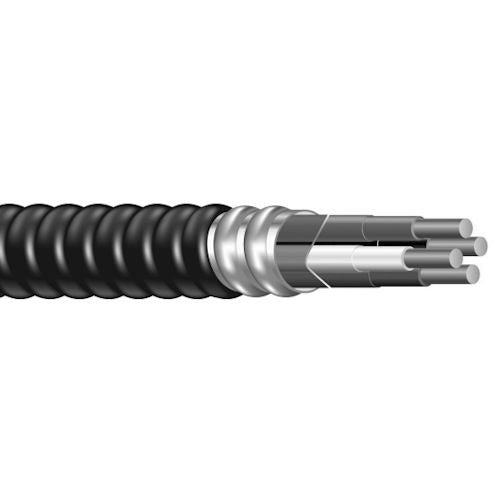

Armorlite ® Type MC Cable - "PVC Jacketed" is constructed with soft-drawn, copper Type THHN/THWN-2 conductors rated 90°C wet or dry, and a bare copper grounding conductor for sizes 1/0 AWG and larger. The conductors are cabled together and a binder tape is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. A black, flame retardant, sunlight resistant, PVC jacket is applied over the armor. The jacket is available in blue or gray colors upon request, subject to economic order quantities. Standard PVC Jacket will not meet "Limited Smoke or LS Rating". Optional SOLONON Jacket can be provided for "LS" Rating.
