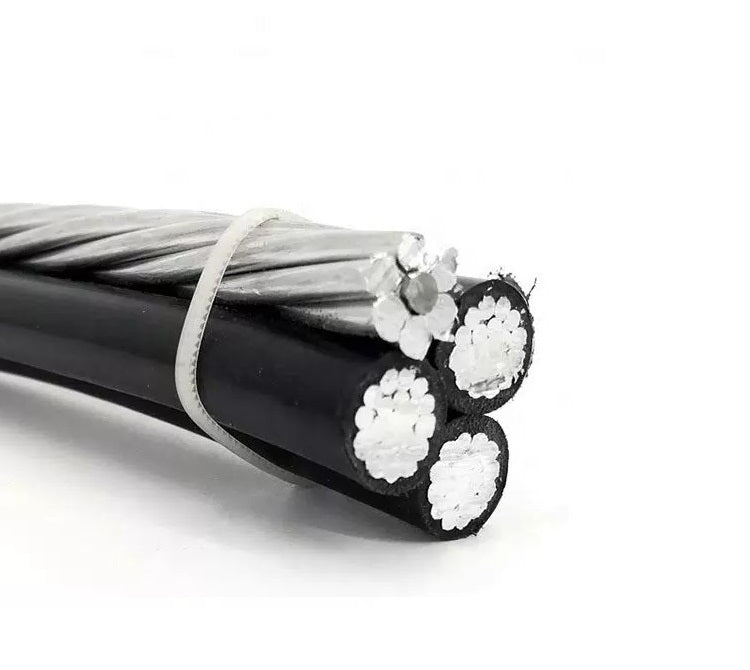

    250' 3/0-3/0-3/0-3/0 Suffolk Aluminum Quadruplex Overhead Service Drop Cable

    250' 3/0-3/0-3/0-3/0 Suffolk Aluminum Quadruplex Overhead Service Drop Cable

    SKU: NES1977X-250 Download PDF

    Now $912.50
    BEFORE   $0.00 Now $912.50
    Sold out
    Web pricing policyShipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
    View full details
    Product Information Resources Applications Features Specifications Reviews
    Product Information

    *Data provided on this page is subject to change based on different manufacturers' variances
    ** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
    In the case the material only comes in a predetermined color or doesn’t come with any color

    3/0-3/0-3/0-3/0 Suffolk Aluminum Quadruplex Overhead Service Drop Cable

    Allowable Ampacity for 3/0-3/0-3/0-3/0 Suffolk Quadruplex Overhead Aluminum Conductor XLP at 90°C: 235 Amps

    Allowable Ampacity for 3/0-3/0-3/0-3/0 Suffolk Quadruplex Overhead Aluminum Conductor Poly at 75°C: 180 Amps

    Also Known As:

    3/0-3/0-3/0-3/0 suffolk aluminum quadruplex, 3/0-3/0-3/0-3/0 suffolk overhead service drop, 3/0-3/0-3/0-3/0 suffolk three phase cable, 3/0-3/0-3/0-3/0 suffolk 3 phase cable, 3/0-3/0-3/0-3/0 suffolk 3 phase power cable, 3/0-3/0-3/0-3/0 suffolk 3 phase extension cord, 3/0-3/0-3/0-3/0 suffolk 3 phase aluminum cable, 3/0-3/0-3/0-3/0 suffolk 3 phase electrical cable, 3/0-3/0-3/0-3/0 suffolk three phase power cable, 3/0-3/0-3/0-3/0 suffolk quadruplex wire, 3/0-3/0-3/0-3/0 suffolk quadruplex overhead wire, 3/0-3/0-3/0-3/0 suffolk overhead service entrance cable.

    Conductors:

    Aluminum quadruplex overhead service drop cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

    Messenger:

    Quadruplex overhead wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

    Insulation:

    Quadruplex overhead service entrance cable has a black cross linked polyethylene (XLP) insulation.


    Resources
    Applications
    The electrical cable known as aluminum quadruplex overhead service drop cable supplies three phase power and is also referred to as the three phase cable. The quadruplex overhead wire is designed for service at 600 V or lower (phase to phase), at a maximum conductor temperature of 75°C.

    The 3 phase power cable has four conductors, with three of them being live conductors and one being a messenger conductor. The three aluminum quadruplex cable conductors are made of soft aluminum and extruded cross-linked polyethylene insulation, which protects the wire from the harsh outdoor environmental conditions; the messenger of this electrical cable is left bare.
    Features
    Standards:

    • ASTM B-230

    • ASTM B-231

    • ASTM B-232

    • ASTM B-399

    • ICEA S -76 - 474
    Specifications
    • Size AWG: 3/0

    • Stranding: 19/w

    • Insulation Thickness (mils): 0.060

    • Neutral Size AWG: 3/0

    • Weight lbs./1000ft: XLP: 872

    • Weight lbs./1000ft: Poly: 838

    • Ampacity: XLP: 235

    • Ampacity: Poly: 180
