250' 18/6 SOOW Shielded Portable Cord 600V UL/CSA

250' 18/6 SOOW Shielded Portable Cord 600V UL/CSA

SKU: NES32193X250

Now $1,297.50
BEFORE   $0.00 Now $1,297.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

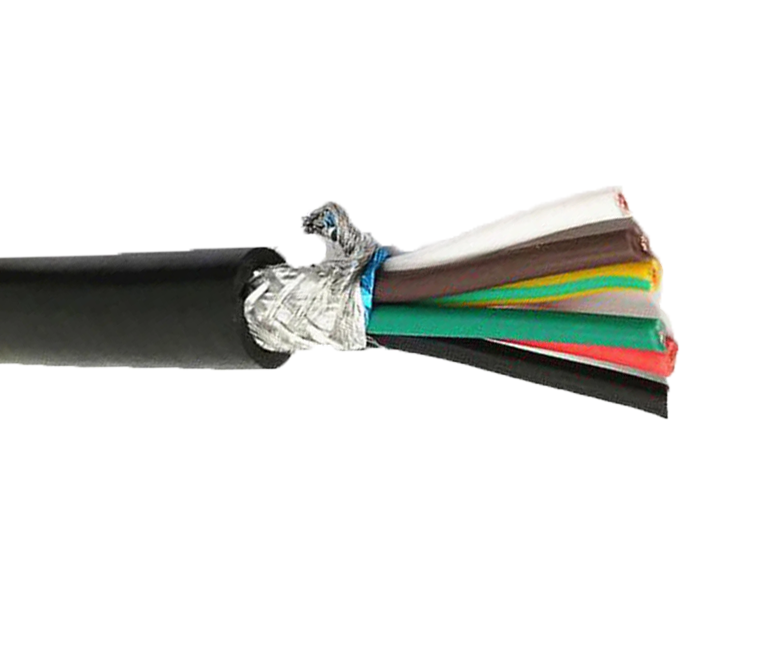

18/6 SOOW shielded Multiconductor Control Portable Cord UL/CSA - 600V

Also Known As:

18/6 SOOW Portable Power Cable, 18/6 SOOW, 18/6 SOOW Power Cord, 18/6 SOOW Portable Cord, 18/6 SOOW Service Cord, 18/6 SOOW Service Cable, 18/6 SOOW Cord, 18/6 SOOW Cable, 18/5 SOOW Wire, 18/6 SOOW Flexible Power Cable, 18/6 SO Cord, 18/6 SOOW Control Cable.

Construction:

Conductor:

Stranded, bare, and fully soft annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions.

Insulation:

Heat, moisture and oil resistant EPDM

Jacket:

Heat, moisture and oil resistant flexible CPE jacket

Applications
SOOW is a water and weather-resistant service cable with an oil-resistant jacket and insulation. It is a reputable low-cost portable electrical cable that offers superior resistance to abrasion. The cable famously stays intact when in contact with a hot surface, making it perfect for tough applications, including compressors, industrial machinery, push-button remotes, industrial control systems, and water purification systems. SO is commonly used in mills, marinas, mines, industrial, commercial and residential facilities.It is also perfect for industrial plants, steel mills, breweries, theaters, process facilities, and construction settings. The cable exhibits premium flexibility and is resistant to chemicals, oil, water, sunlight, and air. The voltage rating is set at 600. A multiconductor cable is suitable for circuit branching and direct burial. The temperature range is -40°C to 90°C. SOOW electrical cable maintains its flexibility in both hot and cold applications.
Features
Standards:
• UL Standard 62
• National Electric Code 501.140 Class I Div. 2
• Mine Safety and Health Administration (MSHA)
• MSHA flame test – P07- KA070018- MSHA
• Canadian Standards Association (CSA) standard 22.2 No. 49
• National Electric Code Article 400
• RoHS Restriction of Hazardous Substances compliant
• OSHA The Occupational Safety and Health Administration compliant
Specifications
Specification:
• AWG Size: 18
• Number of Conductors: 6
• Conductor Strand: 16
• Insulation Thickness: 30 mil
• Jacket Thickness: 80 mil
• Approx. OD: 0.519 inch
• Approx. Weight ( lb/1000ft ): 174
• Ampacity: 5
