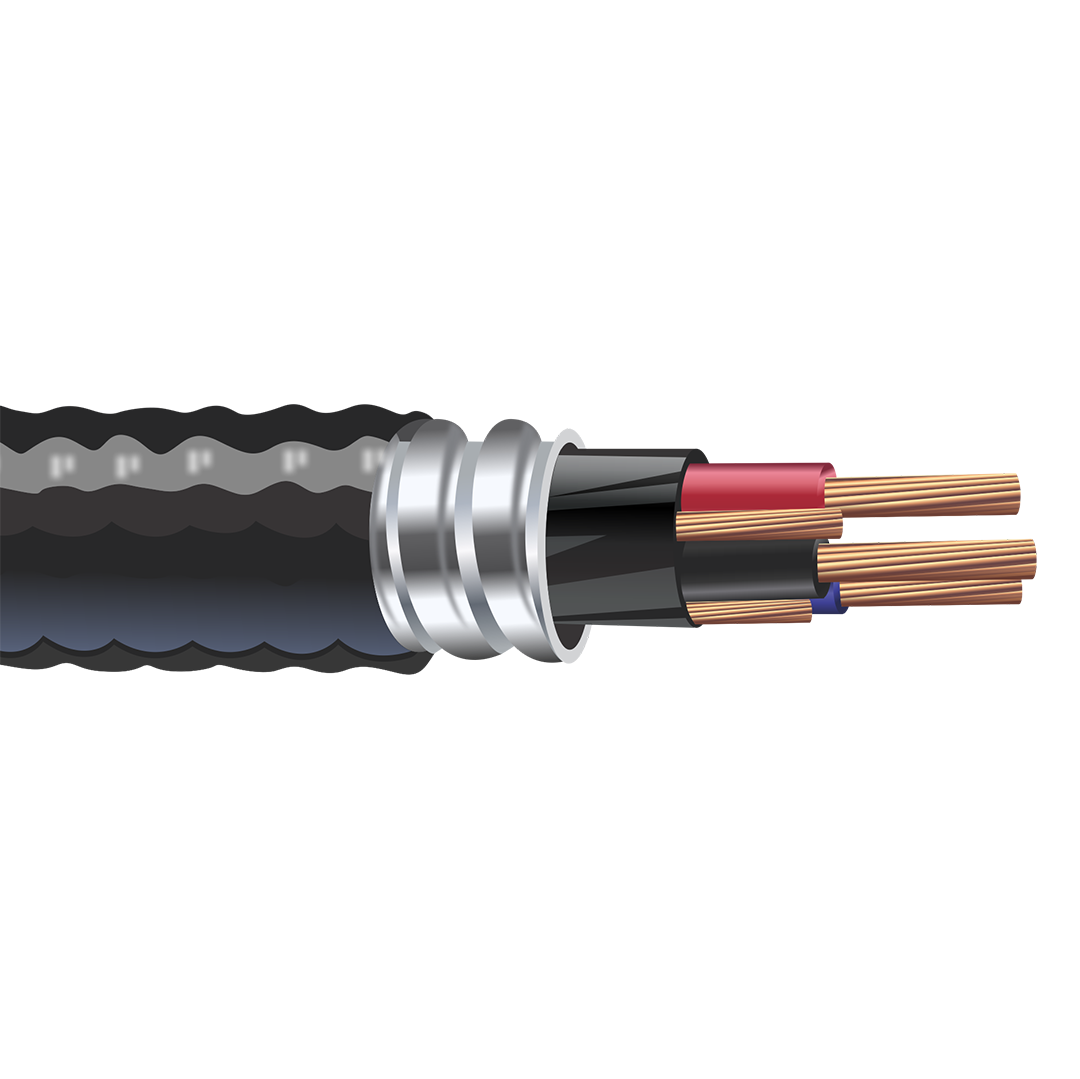

14/5 TECK90 Copper Conductor Aluminum Interlocked Armor With Ground 600V

Allowable Ampacity for 14/5 TECK90 Canadian Copper Building Wire 600V: 20 Amps

Applications:

Teck90 is an armored interlocked electrical cable designed for many industrial applications. It is often used in petrochemical, pulp, and paper industries. It can be used as both open and concealed wiring. The electrical wire is suitable for direct earth burial. Teck90 is used in ventilated, non-ventilated, and ladder-type cable trays. The wire is fit for service entrance above and below the ground. With HL glands, it is suitable for use in various hazardous locations. The cable is rated at 90°C wet or dry. The voltage rating is 600 volts. Teck90 can serve as a cheaper alternative to installations in conduit.

Also Known As:

14/5 Teck90 Canadian Copper Construction Wire, 14/5 Teck90, 14/5 Teck90 Cable, 14/5 Teck90 Wire, 14/5 Teck90 Interlocked Armoured Cable, 14/5 TECK90 Armored Control Cable, 14/5 Teck90 Direct Earth Burial Wire.

Standards:

• CSA C22.2#131
• CSA C22.2 #174
• CSA C22.2 #138
• CSA C22.2 #2256
• Flame Test FT4
• HL
• AG14
• RoHS compliant
• SUN RES
• CSA AG14

Construction:

Conductors:

The conductors are made of class B stranded bare copper. The cable also has a binder tape and aluminum interlocking armor (AIA).Insulation:

The wire has stranded cross-linked polyethylene (XLPE) Type RW90 insulation.

Jacket:

Black Polyvinyl Chloride (PVC) outer and inner jackets are resistant to low acid gas, sunlight, and moisture. The jackets are free of lead.

Specifications:

• Size AWG: 14
• Number of Conductors: 5
• Weight: 276 lbs per 1000 ft
• Ground Size: 14
• Overall Diameter: 0.752 inches
• Insulation: XLPE Type RW90

Features:

• Two or more copper conductors with XLPE (RW90) insulation, uncoated copper ground conductor, binder tape, black inner PVC jacket,, aluminum interlocking armour (AIA), and an overall Black PVC Sunlight resistant Jacket.
  TECK Cables utilize low acid gas, low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

  • Rated 600V
  • Meets Spec's. CSA C22.2 No. 131; CSA C22.2 No. 239

• Minimum installation temperature is at -40°C (with proper handling procedures).

• Maximum conductor temperature is at 90°C.

• Rugged, flexible TECK90 Cables, originally developed for use in Canadian mines,are suitable for a wide range of Industrial and Commercial applications, including service entrance installations,above and below ground and ALL hazardous locations.

• TECK Cables are used in wet and dry locations, open wiring, also ventilated, nonventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

[/short]

APPLICATIONS:

include pulp and paper, chemical, petroleum and other primary and secondary manufacturing industries, apartment buildings and commercial complexes where cables are subject to the risk of mechanical damage and chemical attack.
