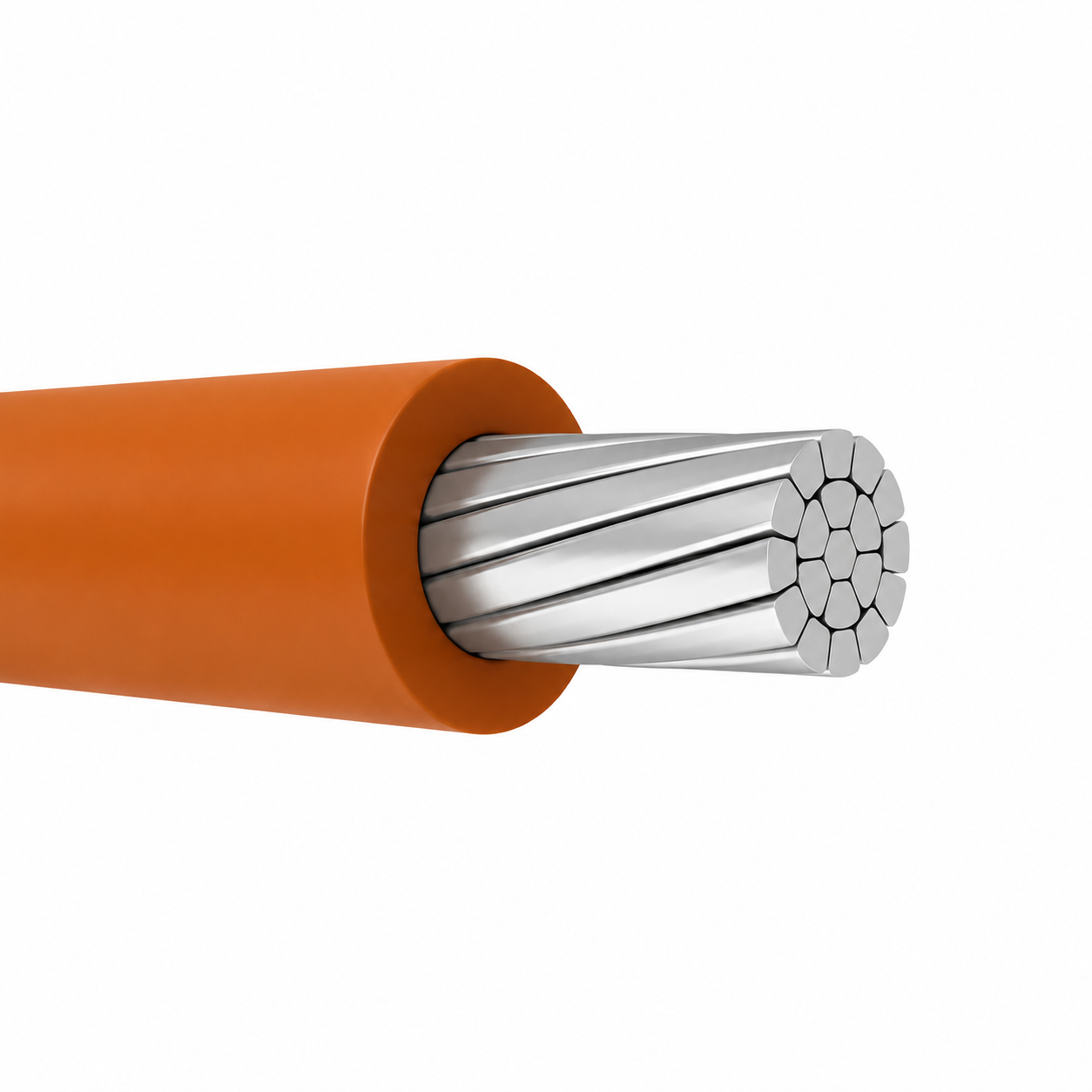

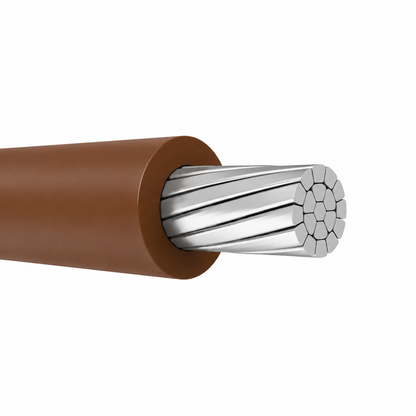

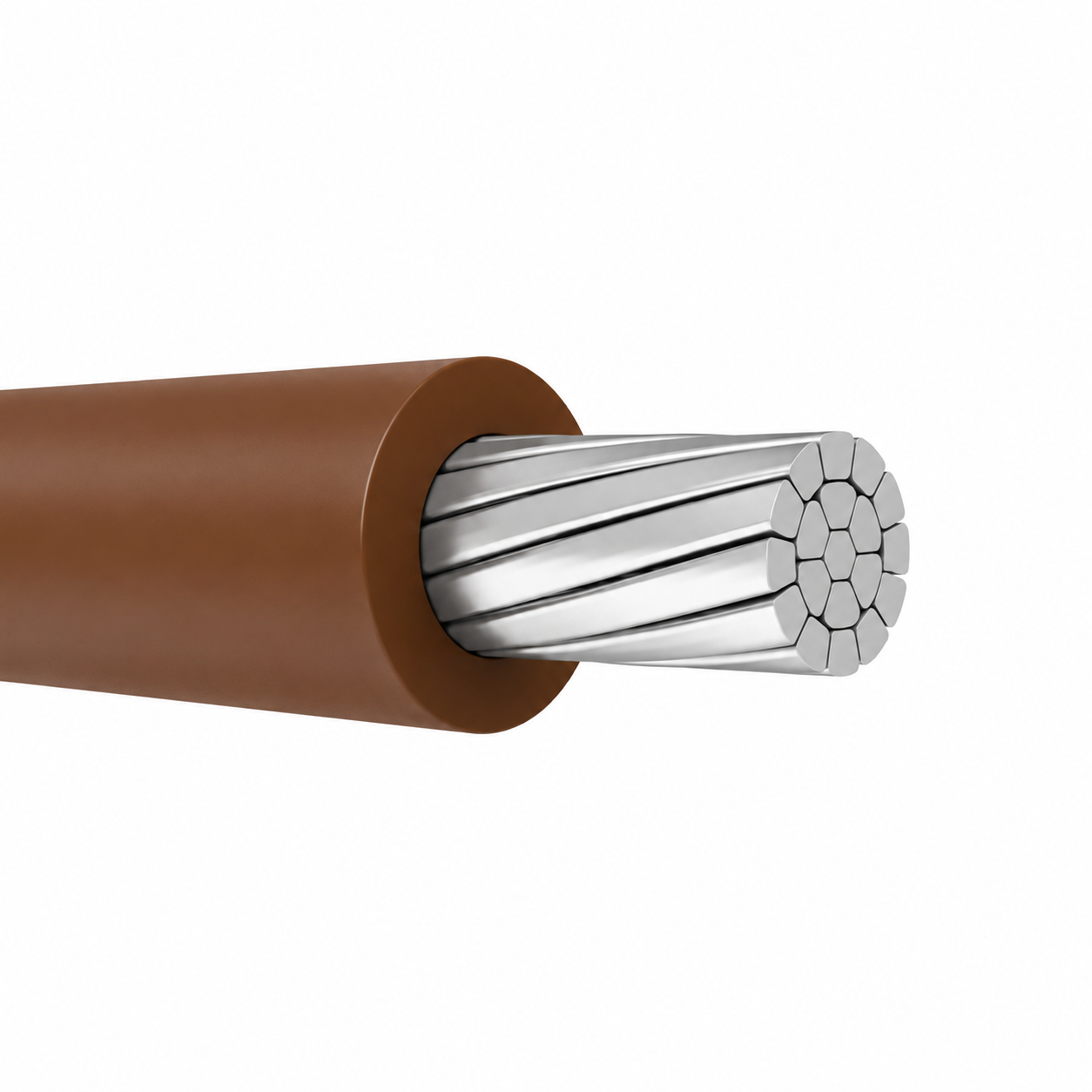

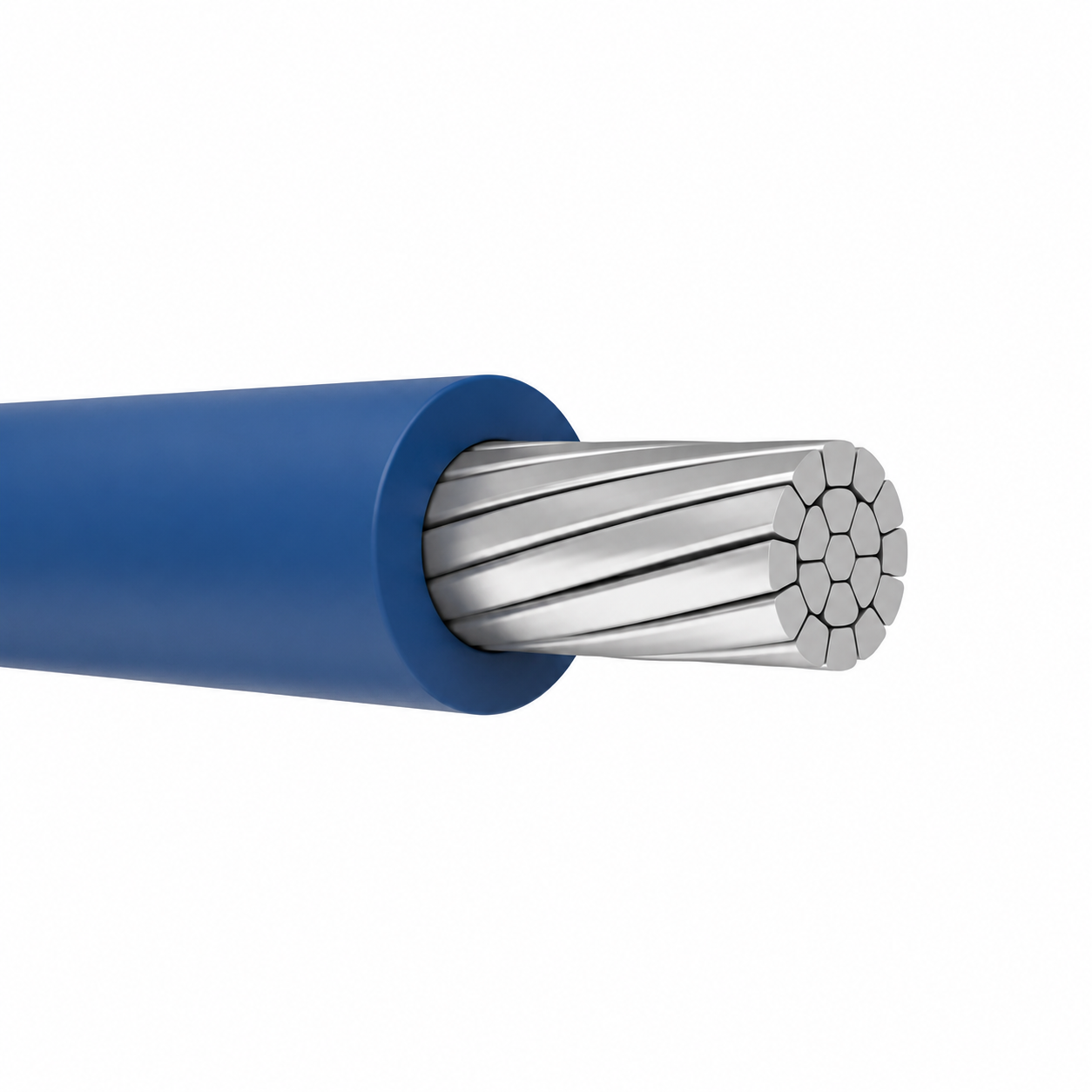

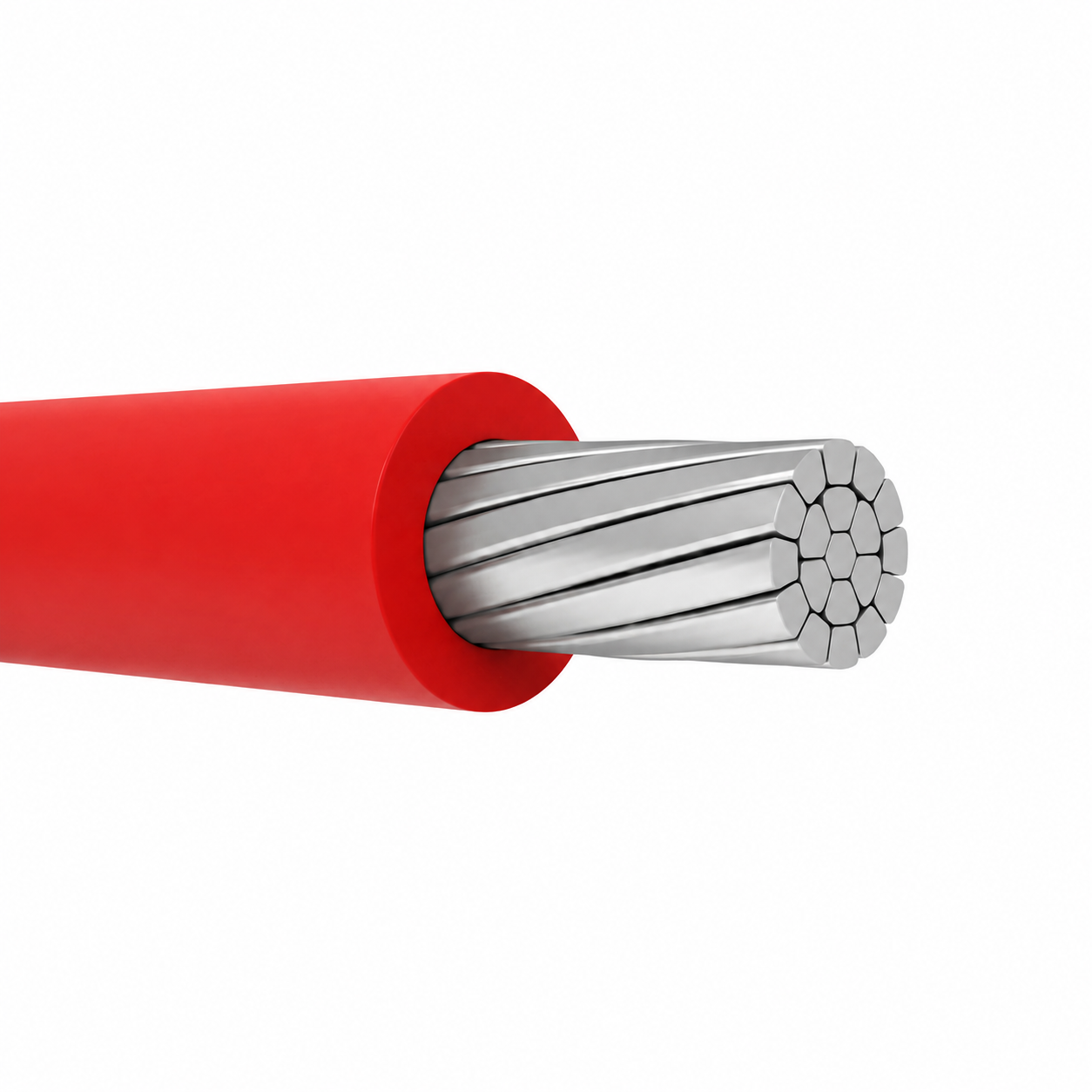

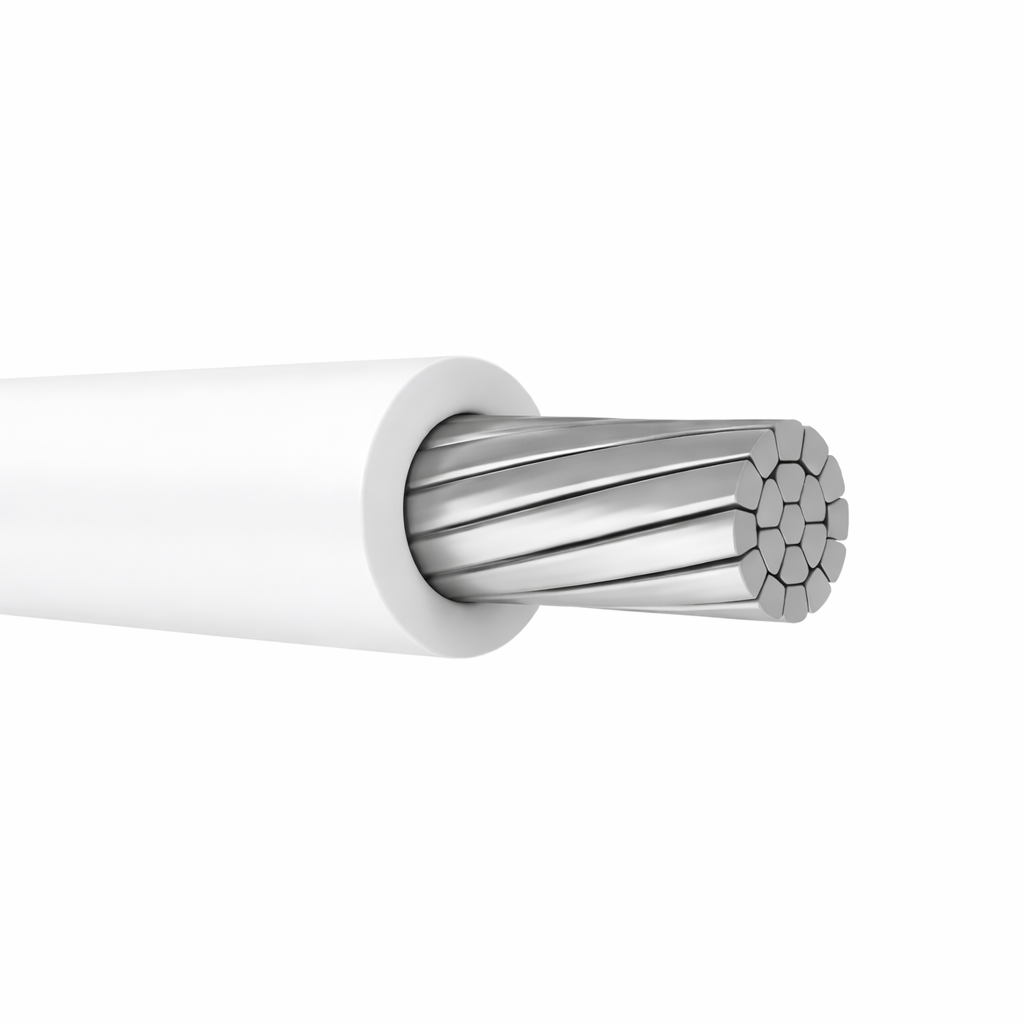

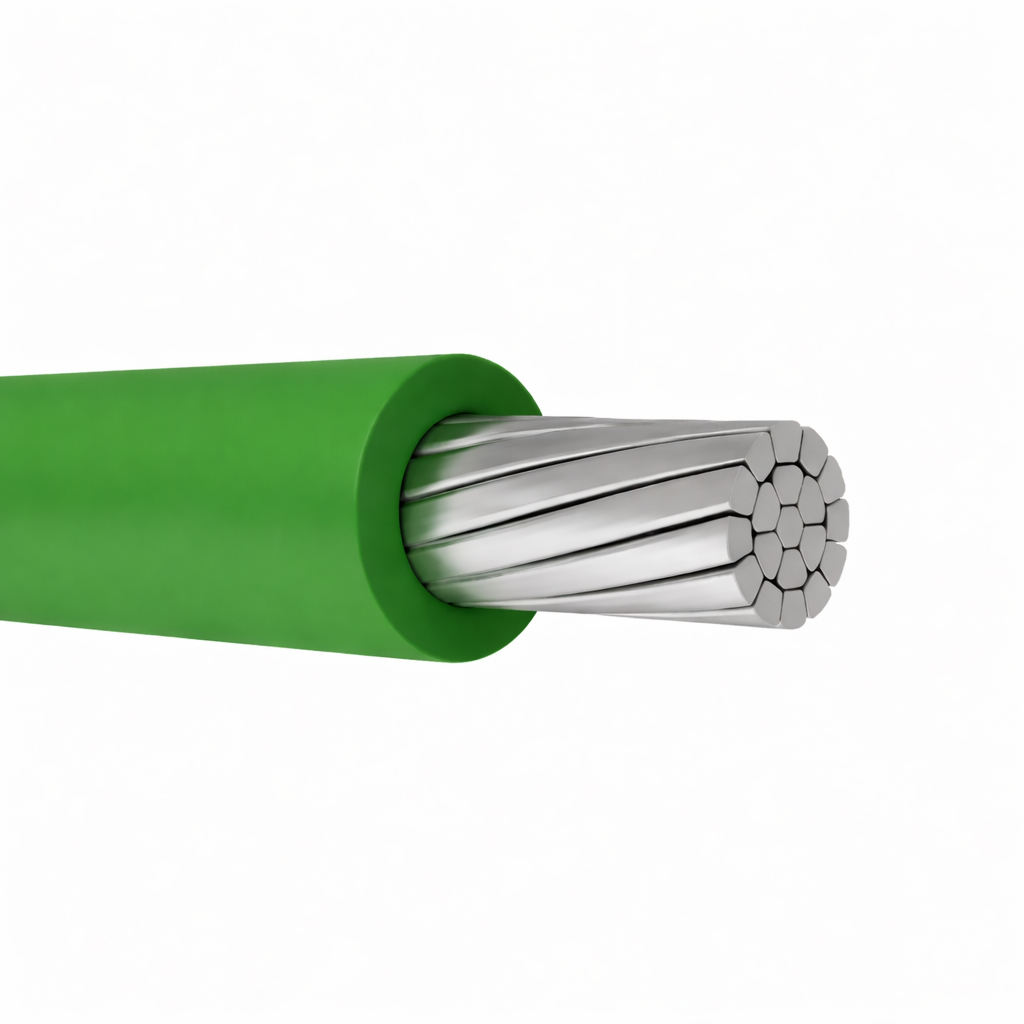

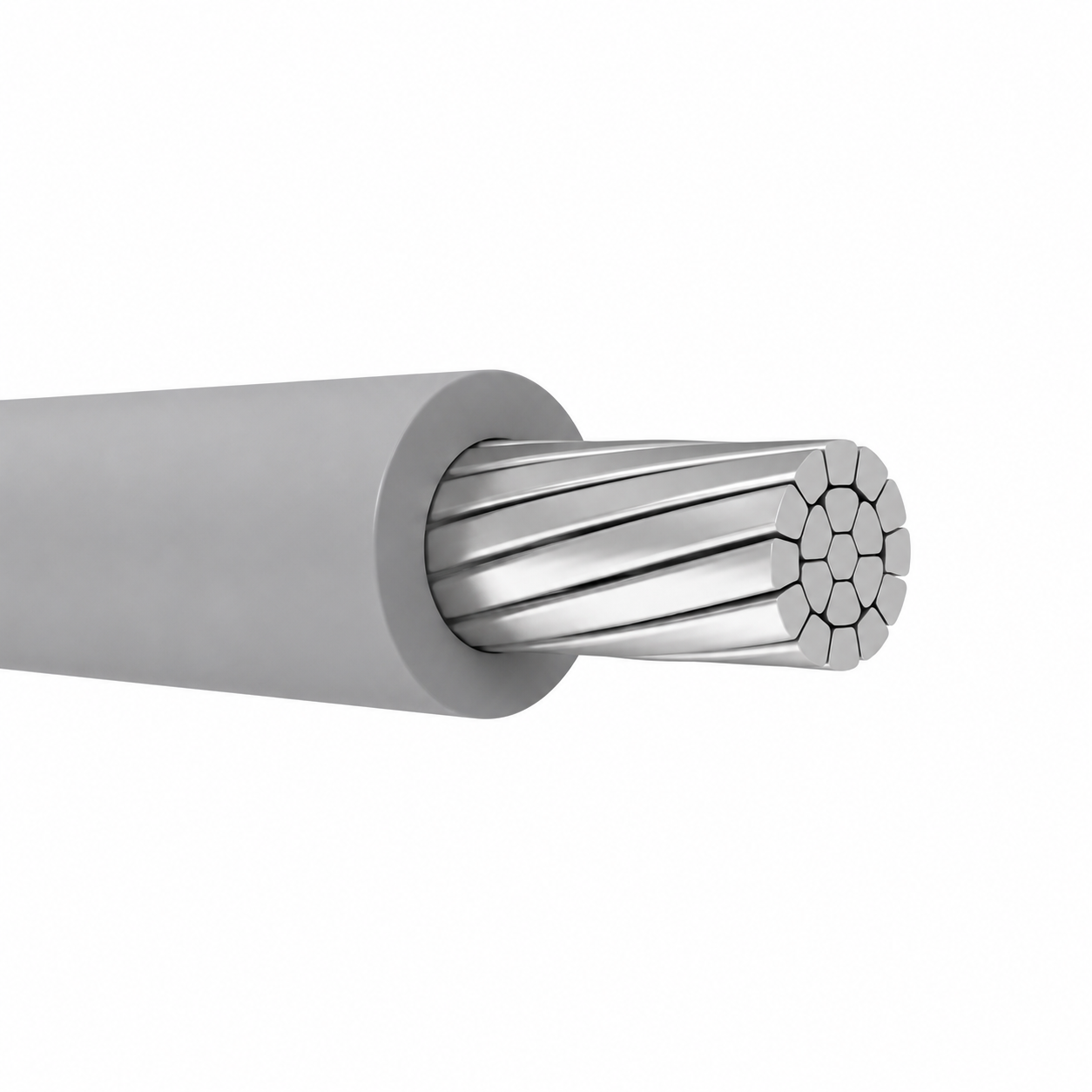

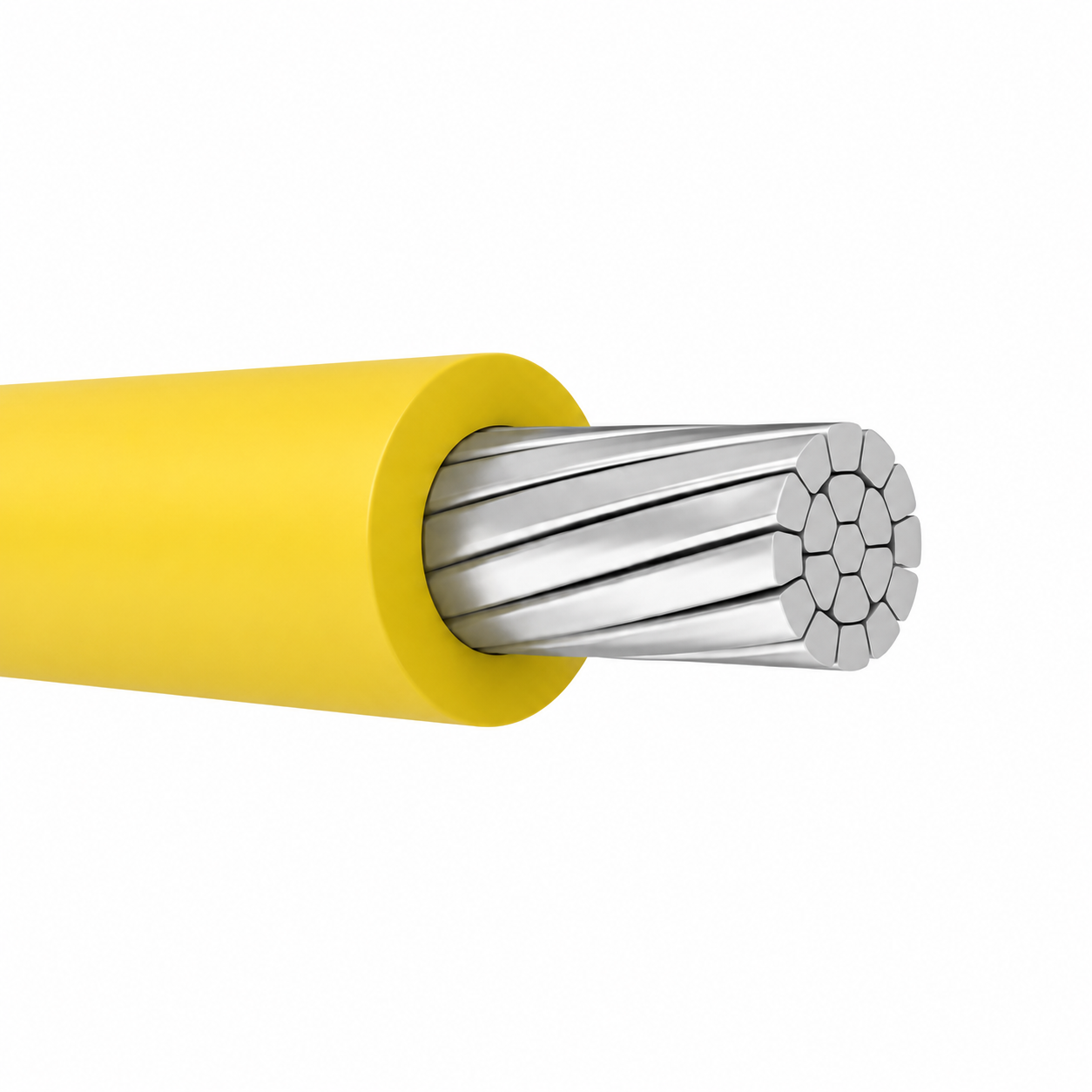

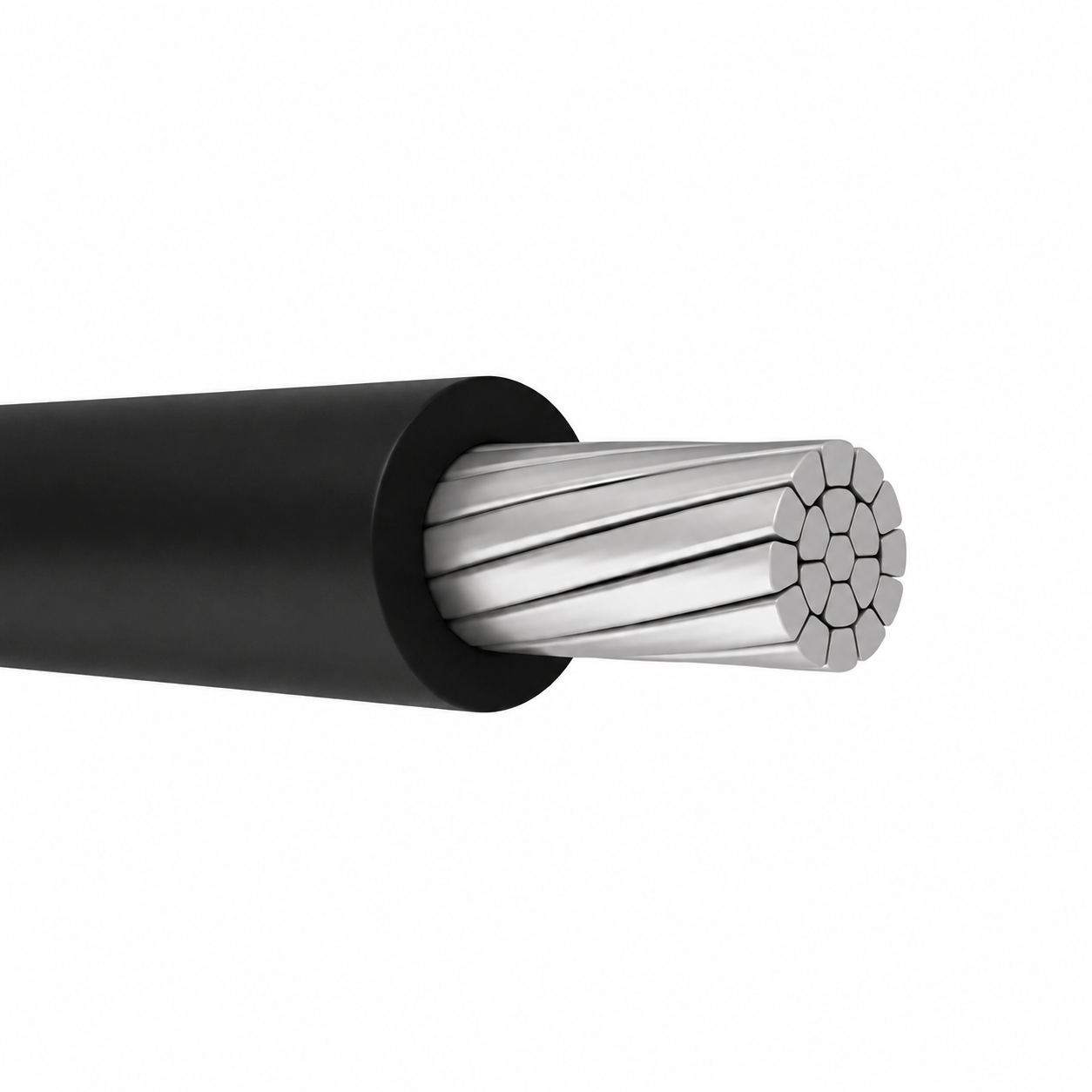

1 AWG THHN THWN-2 Aluminum Building Wire PVC Insulation Nylon Jacket 600V

Allowable Ampacity for 1 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 115 Amps

Applications:

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

1 thhn cable, 1 thwn cable, 1 awg thhn cable, 1 awg thwn cable, 1 thhn aluminum, 1 pvc insulated, 1 pvc insulated wire, 1 pvc insulated aluminium wire, 1 pvc sheathed cable, 1 pvc flexible cable.

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Construction

Conductors:

Compact bare AA-8000 series aluminum, with Class B stranded per ASTM

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Specifications:

• Size AWG: 1

• Stranding: 18

• Conductor Diameter Inches: 0.299

• Insulation Thickness Inches: 0.55

• Jacket Thickness Inches: 0.007

• O.D. Inches:  0.413

• New Weight lb/1000FT: 110 lbs

• Ampacity at 90°C: 115 Amps

[/short]

Application:

• THHN / THWN-2 / T90 cables are primarily use for power distribution. THHN / THWN-2 / T90 cables
may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for cable
is 600V.

Conductors:

• THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B
stranding

Insulation:

• THHN / THWN-2 / T90 has abrasion, heat, sunlight and moisture resistant polyvinyl chloride PVC

Jacket:

• THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant and low coefficient
of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray,
purple and green.

Standards:

• UL standard 83, 1685, CUL
• CSA C22.2 No. 75
• 1/0 & larger are rated for CT use
• Requirements of the National Electrical Code
• NEMA WC-70 construction requirements
• ASTM standards B 800, B 801, B836
• Federal Specification AA-59544
• Sunlight resistant
• RoHS Compliant
