241911 - Enclosure, PC

241911 - Enclosure, PC

SKU: UL TPC 241911T   Download PDF

Qty:
Now $8,719.00   Web pricing policy
BEFORE   Now $8,719.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

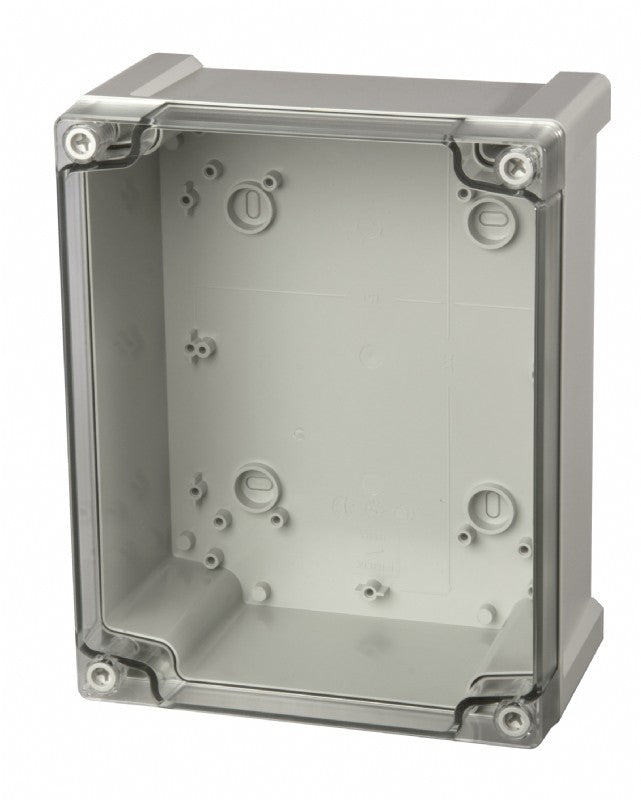

Enclosure, PC with clear cover This product is an empty enclosure or switchgear cabinet designed for various applications It is constructed from polycarbonate material, featuring a light grey base color (RAL 7035) and a transparent grey cover The enclosure is suitable for types 1, 4, and 4X applications and is rated for impact resistance of IK07/IK08 It ensures total electrical insulation and is flammability rated at UL94-5VA (f1) with the cover rated at UL94-V0 (f1).

This enclosure operates correctly within a temperature range of -40 to 175 °F (-40 to 80 °C).

Specifications:

 Dimensions 9.4 x 7.5 x 4.2 inches
 Height (mm) 240
 Width (mm) 191
 Depth (mm) 107
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent Grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, & 4X
 Impact Resistance IK07/IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
