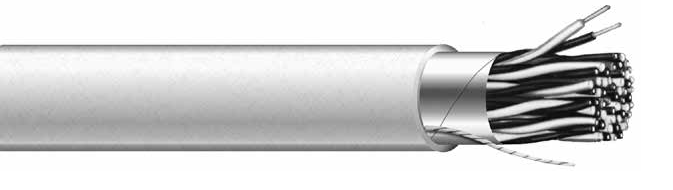

24 AWG 2 Pair Type CMR Foil Shield Computer Cable

24 AWG 2 Pair Type CMR Foil Shield Computer Cable

Applications:

24 AWG 2 Pair Type CMR Foil Shield Computer Cable is a cable used for communication purposes in public address systems, Intercoms, Internal telephones, and remote control circuits. Cable's voltage rating is 300 volts.

Also Known As:

24 AWG 2 Pair shielded communication wire, 24 AWG 2 Pair shielded data communication cable, 24 AWG 2 Pair communication multipurpose cable riser, 24 AWG 2 Pair type CMR cable, riser-rated cable, 24 AWG 2 Pair computer power cable, 24 AWG 2 Pair computer power cord.

Construction:

Conductors:

Fully annealed, stranded tinned copper per ASTM B-33. The pairs of a conductor are twisted.

Insulation:

Premium-grade, color-coded S-R PVC.

Jacket:

A gray PVC jacket with a temperature rating between -20°C to +80°C.

Shield:

An aluminum/polyester shield with a 25% foil overlap and a stranded tinned copper drain wire.

Standards:

• UL Style 2464
• NEC Article 800 Type CMR
• CSA CMG
• RoHS Compliant Directive 2002/95/EC
• UL 70,000 BTU Vertical Tray Flame Test
• CSA CMG Flame Test

Specification:

• Size: 24 AWG
• Number of Pairs: 2
• Conductor Stranding: 7/32
• Nominal Insulation Thickness: 0.010 inches
• Nominal Jacket Thickness: 0.032 inches
• Outside Diameter: 0.214 inches
• Nomonal DCR: Cond.-25.7, Shield-7.2
• Nomonal Cap. pF/ft: A-28.7, B-21.5
