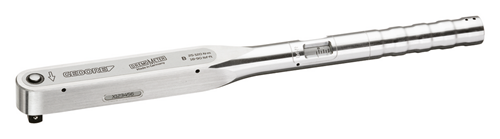

2311348 - 1" DREMOMETER Torque Wrench 600-1500 Nm with A+S Safety Mechanism
2311348 - 1" DREMOMETER Torque Wrench 600-1500 Nm with A+S Safety Mechanism
SKU: SKU: 2311348
Couldn't load pickup availability
Description:
Introducing the DREMOMETER EKL A+S 1" Torque Wrench, which covers a torque range of 600-1500 Nm This advanced tool features a pre-set value locking mechanism alongside a safety device (A+S) for precise adjustments, safeguarding against unintended changes and enhancing reliability Adhering to DIN EN ISO 6789-2:2017 Type II Class A standards, it comes with a traceable test certificate and boasts a maximum permissible deviation of just +/- 3%, surpassing the standard requirement of +/- 4%.
Constructed from a lightweight yet durable aluminum alloy, this wrench is designed for workshop efficiency Its user-friendly design allows for seamless operation with both one-handed and two-handed grip, promoting high safety standards Furthermore, the low wear characteristics of its lever mechanism, combined with high-quality forging, ensure exceptional precision and longevity even under intensive use, making it an indispensable tool for effective torque tightening.
Features and Benefits:
•Pre-set value locking and safety device for enhanced process reliability.
•Calibrated to a maximum permissible deviation of +/- 3 %.
•Lightweight aluminum alloy housing for robustness.
•High user safety with precise operation under various conditions.
•Extremely low wear in leverage mechanism for durability.
•Includes traceable in-house DAkkS laboratory certification.
•Controlled screw tightening in the range of 6 - 3000 Nm.
•Industrial manufacturing applications.
Specifications:
| Total width [mm] | 60 mm |
| Total height [mm] | 40 mm |
| Total length [mm] | 920 mm |
| Distance housing - square drive | 30 mm |
| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 25 mm |
| Drive square inch | 1" |
| Tightening direction | Left and right |
| Version | A S Fuse |
| Standard | ISO 1174 DIN 3120 - B 25 |
| Trigger mechanism | Short path triggering |
| Torque (max.) [Nm] | 1500 Nm |
| Torque (min.) [Nm] | 600 Nm |
| Torque wrench type | A+S EKL |
| Fixed setting | Yes |
| Calibration length | 1473 mm |
| Width of head 1 [mm] | 60.0 mm |
| Head height 1 [mm] | 40 mm |
| Length extension tube | 925 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Scale division [Nm] | 25 Nm |
